Mounting
| Maximum screen size compatibility |
63 " |
| Minimum screen size compatibility |
42 " |
| Minimum VESA mount |
200 x 200 mm |
| Maximum VESA mount |
800 x 600 mm |
| VESA mounting interfaces |
200 x 200, 300 x 300, 400 x 200, 800 x 600 mm |
| Number of displays supported |
2 |
| Maximum weight capacity |
80 kg |
Ergonomics
| Height adjustment |
Y |
| Turn angle |
60 ° |
| Height adjustment range |
832 - 1500 mm |
| Tilt angle |
-5 - 15 ° |
Technical details
| Mounting type |
Ceiling |
| Material |
Steel |
| Certification |
TUV |
| Adjustable |
Y |

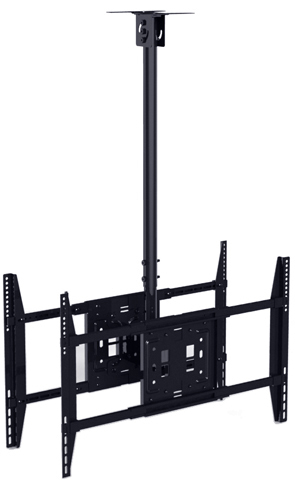

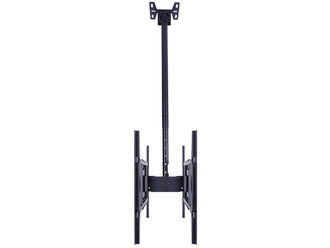

The new M Public Ceilingmount Large Back to Back is a sturdy double flat panel ceiling mount with VESA adapters supporting up to 800x600.
The M Public Ceilingmounts Back to Back feature allows large flat panels or digital signage solutions to be seen from multiple locations. This solution is perfect to use in public installations such as stores, airports, hospitals or elsewhere where safety, stability and perfect viewing angles from multiple positions around the screens are needed.

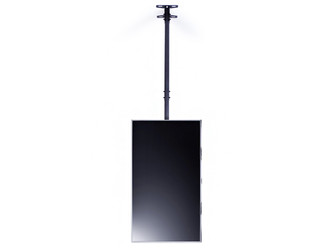

Change the screen from landscape to portrait by demounting the screen and then fixing the screen to needed position.
Highlights
- Portait or landscape position of screen possible by demounting.
- Includes VESA adapters for compatibility up to VESA 800x600.

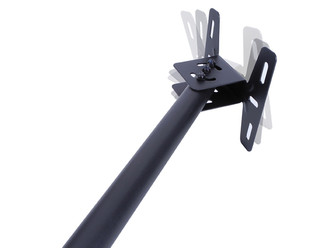

- Variable tilt with locking pin mechanism for precise positioning.
- Integrated cable management routes cables through ceiling plate.
- Power click install for easy, fast and safe installation.

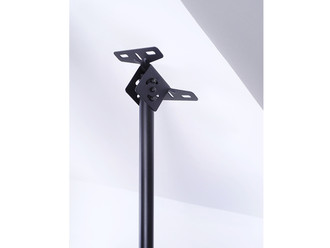

- Ceiling plate included.
- Complete hardware kit included.
- TUV approved.
