Mounting
| Maximum screen size compatibility |
27 " |
| Minimum screen size compatibility |
15 " |
| Minimum VESA mount |
75 x 75 mm |
| Maximum VESA mount |
100 x 100 mm |
| Number of displays supported |
1 |
| Maximum weight capacity |
12 kg |
| Suitable for |
Computer monitor / TV |
Ergonomics
| Height adjustment |
Y |
| Swivel angle |
185 ° |
| Height adjustment range |
0 - 671 mm |
| Cable management |
Y |
| Tilt angle |
-60 - 20 ° |
Weight & dimensions
| Depth |
1407 mm |
| Width |
200 mm |
| Weight |
11400 g |
| Height |
1295 mm |
Technical details
| Mounting type |
Wall |
| Adjustable |
Y |
Design
| Material |
Aluminium, Plastic, Steel |
15-27", VESA 100x100 mm Max, Tilt, 12 kg Max, 11.4 kg, White

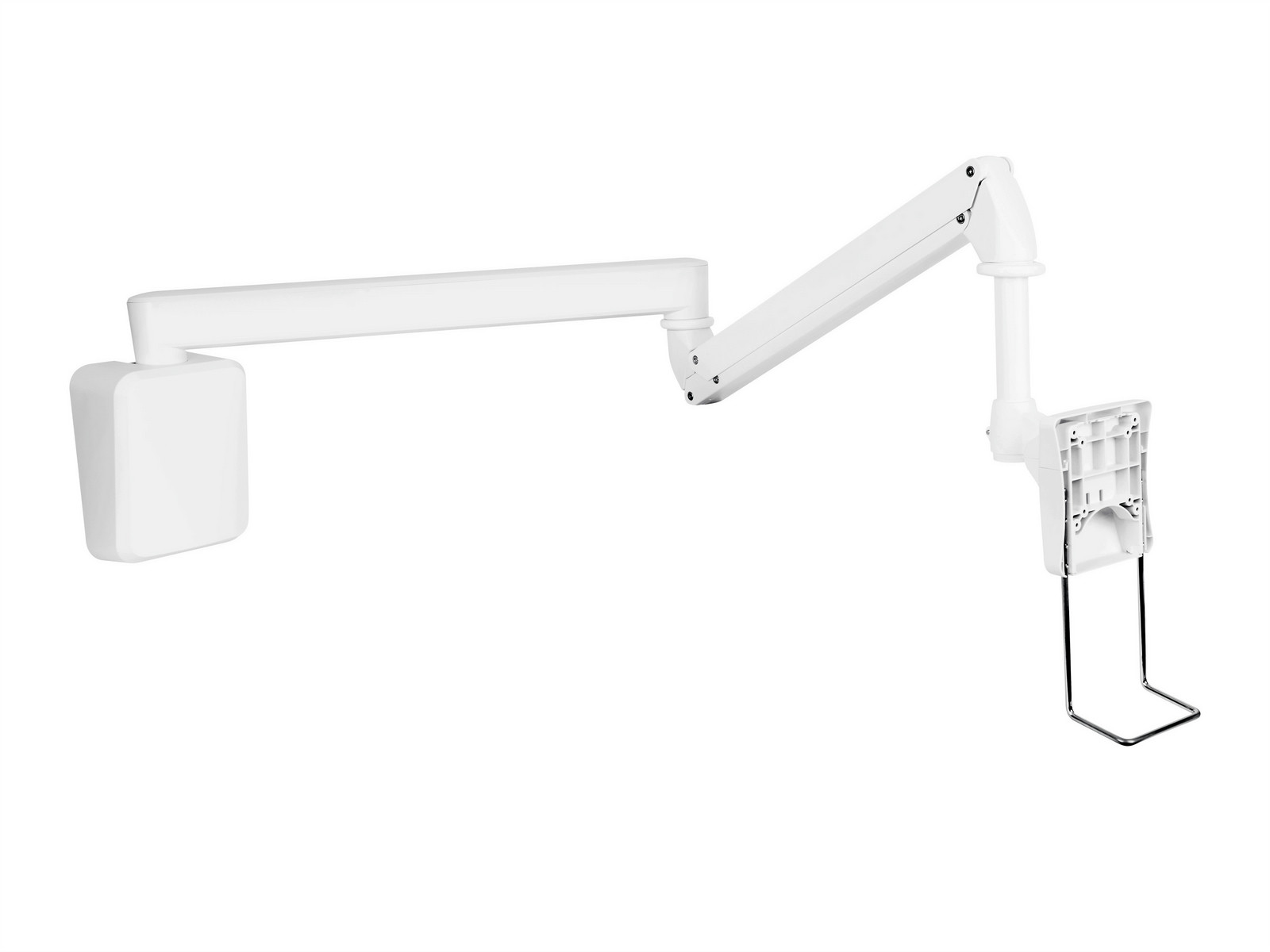

M VESA Full Motion Medical Arm HD
M VESA Full Motion Medical Arm HD - with flexible 4 joint arms, for medical environments, VESA 75, 100, monitor weight 6-12kg, wallmount - white
Meet our new wall-mounted articulated monitor arm for LCD’s and infotainment terminals - suitable for hospital environments. Holds monitors weights between 6-12kg.
Our M VESA Full Motion Medical Arm is designed for use with LCD’s or infotainment system found in Hospitals and other health related environments.
The arm itself holds high medical quality levels in all areas and offer wide flexibility for installation at bedside in a typical hospital room or other such environments.
Finally a perfect fit for any installation requiring good reach from a typical swivel arm still compact when stowed away.
This arm is both light-weight and compact which allows for an easy installation and even easier usage. It features a standard VESA mounting for maximum compatibility.
An ingenious tilt mechanism developed by Multibrackets ensures the arm is very easy to maneuver, providing the user with the most comfortable position when using the screen or touch screen of the infotainment system.
Easy to install - simple to operate
Our M VESA Full Motion Medical Arm was designed to be both light-weight and compact which could allow for a simple and fast installation. Featuring standard VESA 75 and 100 mounting for maximum compatibility to today’s small and medium sized TV’s and infotainment systems. With a flexible tilt function makes this arm easy to maneuver, providing the user with a comfortable position at all times. The design allows for very simple stow away after usage is over.
Designed for Hospital environments
The M VESA Full Motion Medical Arm is designed for hospital environments, it is covered and easy to clean and disinfect to ensure patient safety.
Highlights
- Designed for medical environments
- Heavy Duty monitors 6-12kg weight
- Light weight & compact
- Great stability and reach
- Easy to stow away after use
- Simple to install
- Hardware kit included
