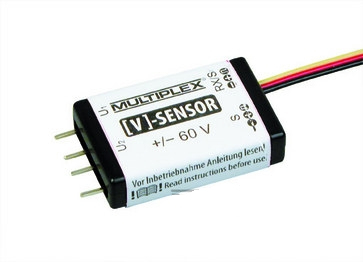

MULTIPLEX Voltage sensor

Voltage sensor for receivers M-LINK Measures voltages up to 60 V (e.g. flight pack / drive battery, ignition battery, turbine battery ...). You can monitor all the safety-relevant airborne voltages in order to have a clear overall idea of the model’s safety situation. If the second measurement channel is activated using a MULTImate (or your PC with Sensor Data Manager), the sensor can measure a second voltage value and pass it on to the transmitter.

Contents:
- voltage sensor with UNI lead
- Accessories / replacement parts:
- UNI lead (2 x socket) # 8 5056
- For connecting the voltage sensor (# 8 5400) to the SAFETY-SWITCH 12 HV
- TwinBatt / 12 HV TwinBatt (M6) (# 8 5009 / # 8 5010).
- The following can be activated and altered using the MULTImate, or using Sensor Data Manager on the PC:
- Address Address (screen line on transmitter) at which the voltage is displayed
- Top alarm Upper voltage value, above which an alarm is triggered at the transmitter
- Bottom alarm Lower voltage value, below which an alarm is triggered at the transmitter
- Option Additional generation of minimum, average or maximum voltage
- Address option Address (screen line on transmitter) at which the optional value is displayed
- The same applies to the second measurement channel
