Ports & interfaces
| Parallel ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| Serial ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Packaging content
| Display included |
N |
| Mouse included |
N |
Other features
| Hard disk manufacturer |
Samsung |
| Networking features |
Gigabit Ethernet |
Processor
| Processor lithography |
45 nm |
| Maximum number of PCI Express lanes |
16 |
| Memory clock speeds supported by processor |
1333, 1066 MHz |
| Memory channels supported by processor |
Dual |
| Conflict Free processor |
N |
| PCI Express configurations |
1x16, 2x8 |
| FSB Parity |
N |
| CPU multiplier (bus/core ratio) |
20 |
| Processor operating modes |
64-bit |
| Stepping |
B1 |
| Processor cores |
4 |
| Tcase |
72.7 °C |
| ECC supported by processor |
N |
| Memory bandwidth supported by processor (max) |
21 GB/s |
| Maximum internal memory supported by processor |
16 GB |
| Processor front side bus |
1333 MHz |
| Processor cache type |
Smart Cache |
| Number of Processing Die Transistors |
774 M |
| PCI Express slots version |
2.0 |
| Number of processors installed |
1 |
| Processor boost frequency |
3.2 GHz |
| Processor cache |
8 MB |
| Thermal Design Power (TDP) |
95 W |
| Processor frequency |
2.66 GHz |
| Memory types supported by processor |
DDR3-SDRAM |
| Bus type |
DMI |
Processor special features
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Physical Address Extension (PAE) |
36 bit |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
37.5 mm |
| Processor ARK ID |
42915 |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
| CPU configuration (max) |
1 |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Supported instruction sets |
SSE4.2 |
| Intel Rapid Storage Technology |
N |
| Intel® Turbo Boost Technology |
Y |
| Intel Enhanced Halt State |
Y |
Expansion slots
| PCI Express x1 slots |
1 |
| PCI Express x16 slots |
1 |
Performance
| Audio output channels |
7.1 channels |
| Audio system |
VT1708 |
Graphics
| Discrete graphics adapter model |
AMD Radeon HD 4650 |
| On-board graphics adapter |
N |
Memory
| Maximum internal memory |
16 GB |
| Internal memory type |
DDR3-SDRAM |
| Internal memory |
4 GB |
Storage
| Total storage capacity |
1500 GB |
| Card reader integrated |
Y |
| Hard drive interface |
Serial ATA II |
| Hard drive speed |
7200 RPM |
Additionally
| InTru™ 3D Technology |
N |
| Intel AES New Instructions |
N |
| System bus data transfer rate |
2.5 GT/s |
| Processing die size |
296 mm² |
| Ethernet LAN (RJ-45) ports quantity |
1 |

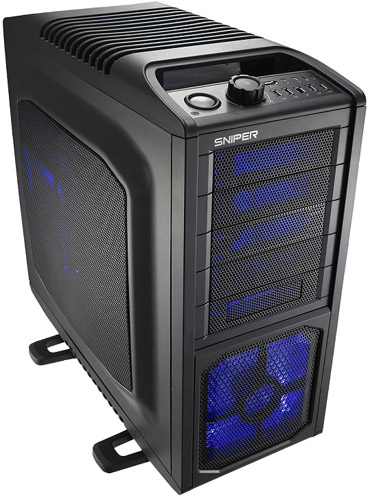

MyCom Intel i5 PC. Processor frequency: 2.66 GHz, Processor family: Intel Core i5-xxx, Processor model: i5-750. Internal memory: 4 GB, Internal memory type: DDR3-SDRAM, Maximum internal memory: 16 GB. Total storage capacity: 1500 GB, Hard drive interface: Serial ATA II, Hard drive speed: 7200 RPM. Discrete graphics adapter model: AMD Radeon HD 4650. Operating system installed: Windows 7 Home Premium
