Ports & interfaces
| AUX in |
Y |
| Digital audio optical out |
1 |
| Microphone in |
Y |
| Record out |
1 |
| Booth out (RCA) |
2 |
| MIDI out |
N |
| Booth out (1/4") |
2 |
| Line inputs (RCA) |
6 |
| Phono inputs (RCA) |
2 |
Technical details
| Backlight |
N |
| USB powered |
N |
System requirements
| Internet connection required |
N |
Equalizer
| Equalizer |
Y |
| Equalizer bands quantity |
3 |
Audio
| Line Signal-to-Noise Ratio (SNR) |
92 dB |
| Number of EQ bands per channel |
3 |
| Frequency range |
20 - 22000 Hz |
Inputs
| Microphone input impedance |
1200 Ω |
| Input impedance |
20000 Ω |

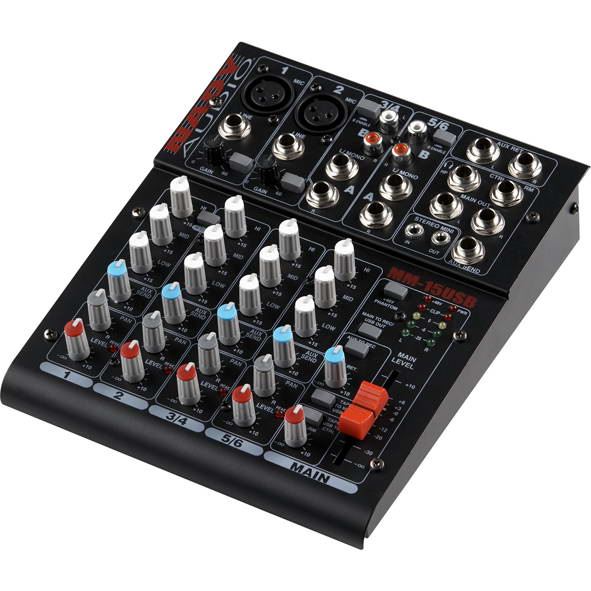

MM-15USB - Mini-Mixer with USB
- With up to 15 simultaneous inputs and ten outputs (including complete USB interface), this versatile desktop mini-mixer is a valuable tool for almost any studio recording, computer, home audio or live performance application
- Two mono channels with balanced Mic and Line Inputs and two stereo channels with Line and RCA Inputs; each channel has Trim, 3-Band EQ, Aux Send, Pan, and Level Controls with Peak indicator LEDs
- USB 1.0 I/O Interface to send or receive digital audio signals to or from any computer
- Stereo mini-jack iPod/MP3 inputs
- Ultra-low noise mic preamps for optimum signal integrity; full spectrum frequency response with wide dynamic range and superior headroom
- Separate Main Mix, Control Room, and Headphone outputs; Stereo Aux; Return inputs with Level control; Tape In/Out RCA connectors plus stereo mini-jack output
- Dual 4-segment LED display bar graph meters
- SMD technology for most compact design
- Miniature 7” x 8” durable steel casing and superior construction for long life and maximum reliability
