GPS Performance
| Acquisition times - cold |
26 s |
| Update rate |
20 Hz |
| Navigation signals supported |
B1, E1, L1 |
| Baud rate |
14.4 Kbit/s |
| Sensitivity |
-160 dBmW |
| Navigation protocols |
GGA, GSA, GSV, RMC, VTG |
| GPS accuracy - position |
2.5 m |
| Acquisition times - hot |
1 s |
| Interface |
Serial |
| Frequency |
1575.42 MHz |
| Chipset |
u-blox NEO-M8U |
Software
| Linux operating systems supported |
Y |
GPS/GLONASS/BEIDOU COMPASS/GALILEO/QZSS, IPX7, 5-48 V DC, 45 mA, 62 x 21 mm

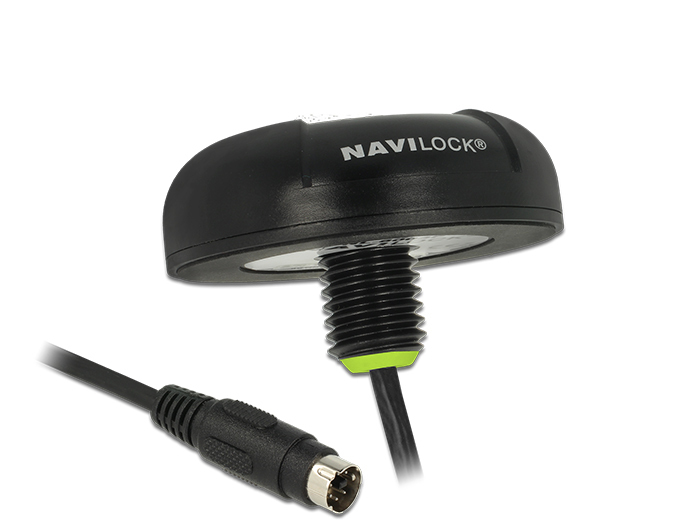

The MD6 serial multi GNSS UDR receiver by Navilock based on u-blox NEO-M8U chipset has a built-in active antenna as well as high-sensitivity sensors such as a 3D accelerometer and a 3D gyroscope. In conjunction with a laptop, a reliable position determination is also possible when the GNSS signal is interrupted. The MD6 universal connector enables the connection of optional USB or serial connecting cables. The NL-82004P GNSS receiver can be installed onto different vehicle roofs (car, truck, bus etc.) by using the included installation material. Thus it can perfectly fit into the vehicle concept, due to its design.
