GPS Performance
| Acquisition times - cold |
26 s |
| Navigation signals supported |
L1 |
| Baud rate |
14.4 Kbit/s |
| Sensitivity |
-160 dBmW |
| Navigation protocols |
GGA, GSA, GSV, NMEA 0183, RMC, VTG |
| GPS accuracy - position |
2.5 m |
| Acquisition times - hot |
1 s |
| Interface |
USB |
| Frequency |
1575.42 MHz |
| Chipset |
u-blox NEO-M8U |
Software
| Linux operating systems supported |
Y |
Ports & interfaces
| USB connector type |
USB Type-A |
GPS/GLONASS/BEIDOU COMPASS/GALILEO/QZSS, -160 dBm, 20 Hz, IPX7, 62 x 21 mm

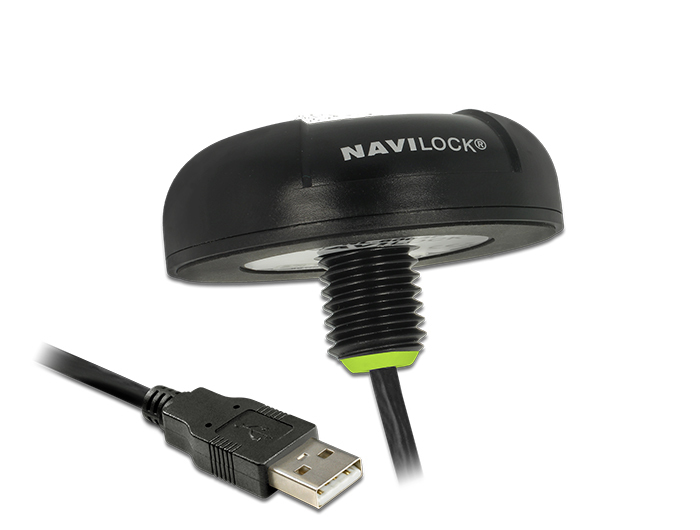

The USB 2.0 Multi GNSS UDR receiver by Navilock based on u-blox NEO-M8U chipset has a built-in active antenna as well as high-sensitivity sensors such as a 3D accelerometer and a 3D gyroscope. In conjunction with a laptop, a reliable position determination is also possible when the GNSS signal is interrupted. The NL-82004U GNSS receiver can be installed onto different vehicle roofs (car, truck, bus etc.) by using the included installation material. Thus it can perfectly fit into the vehicle concept, due to its design.
