Ports & interfaces
VGA (D-Sub) ports quantity |
1 |
Expansion slots |
1x PCI Expresss (X4)\n2x PCI-X 64bit/66MHz\n2x PCI 32bit/33MHz (5V) |
PS/2 ports quantity |
2 |
Serial ports quantity |
2 |
Networking
Networking features |
Gigabit Ethernet |
Wake-on-LAN ready |
Y |
Storage
Hard drive interface |
SCSI |
Hard drive capacity |
146 GB |
Hot-swap |
Y |
Processor
Processor frequency |
2.8 GHz |
Processor front side bus |
800 MHz |
Processor cache type |
L2 |
Processor cache |
2 MB |
Number of processors installed |
1 |
Memory
Maximum internal memory |
8 GB |
Memory slots |
4x DIMM |
Internal memory |
0.5 GB |
Internal memory type |
DDR-SDRAM |
Performance
Security features |
2 level password |
Other features
CD read speed |
48 x |
Rack option |
5U |
Graphics
Maximum graphics adapter memory |
8 MB |
Additionally
Chipset |
Intel E7320 |
Ethernet LAN (RJ-45) ports quantity |
1 |

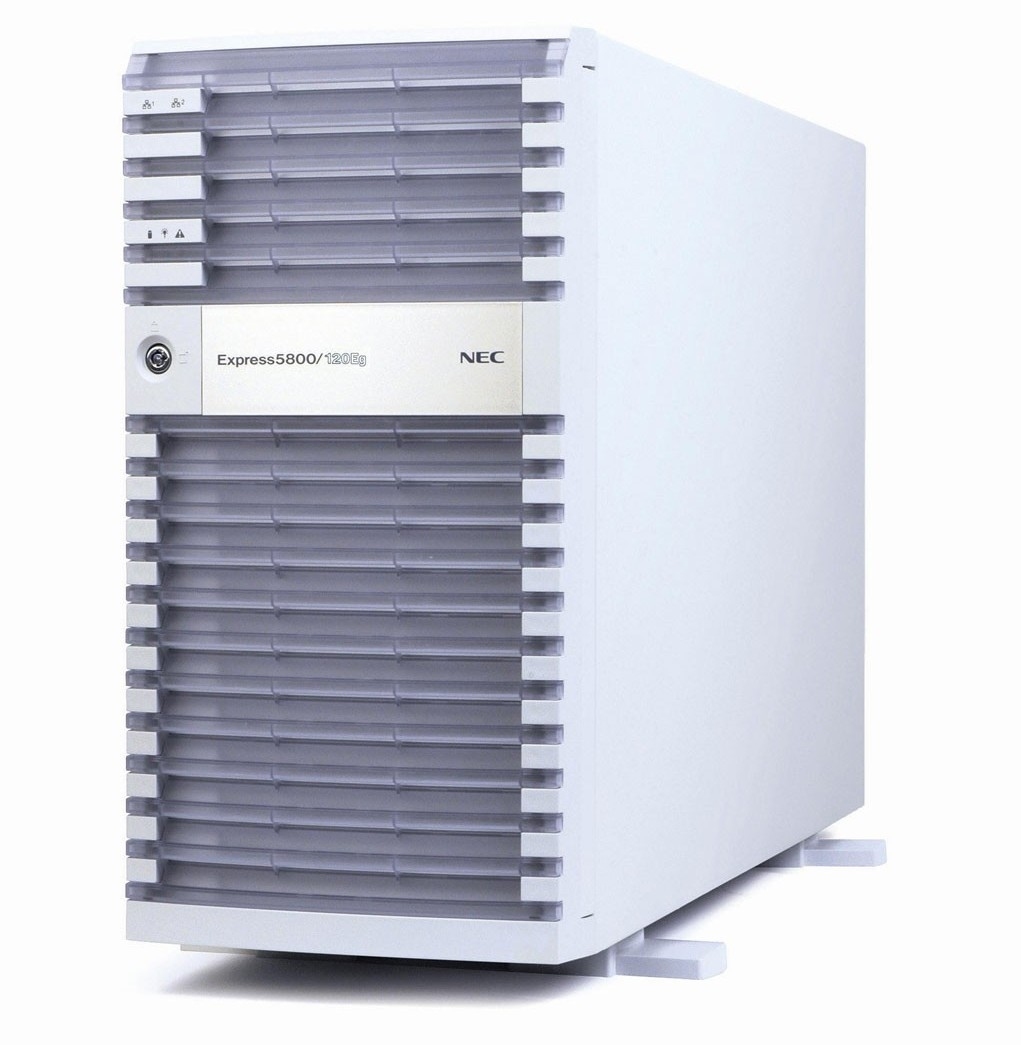

Express5800 120Eg - Intel Xeon 2.8GHz, 512MB RAM, 2x73GB, CD-ROM, LAN, NL/FR/EN
High Performance at Exceptional Value
The NEC Express5800/120Eg is designed to meet thedemand of mid-size growing companies, remote offices and workgroups of large corporations lookingfor a reliable, powerful server platform at affordable cost. It integrates the latest Intel Xeon processor with 2MB L2 cache, a high speed 800MHz Front Side Bus, Gigabit network interface and DDR333 ECC SDRAM for higher memory bandwidth and enhanced system performance.
Ideal for file/print sharing, groupware and Email applications, the NEC Express5800/120Eg will bringnew levels of performance to workgroup environments.
Easy Set-Up & Manageability
To simplify the installation and manageability of the system, all NEC Express5800/120Eg servers are shipped with ExpressBuilser set-up and configuration software and ESMPRO Server Manager. Finally, mass deployment is made easy with the option for Microsoft Windows Server 2003 operating system preload.
