Memory
| Memory slots |
8x DIMM |
| Internal memory type |
DDR2-SDRAM |
| Maximum internal memory |
12 GB |
| Internal memory |
1 GB |
Storage
| Hard drive capacity |
73 GB |
| Hot-swap |
Y |
| Hard drive interface |
SCSI |
Processor
| Processor front side bus |
800 MHz |
| Processor cache type |
L2 |
| Processor cache |
2 MB |
| Number of processors installed |
1 |
| Processor frequency |
2.8 GHz |
Graphics
| Maximum graphics adapter memory |
16 MB |
Networking
| Wake-on-LAN ready |
Y |
| Networking features |
2-ch. Gigabit Ethernet |
Other features
| Hard disk controller |
2-channel U320 SCSI + HostRAID |
| Power availability |
600 W |
Ports & interfaces
| Serial ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
| Expansion slots |
3x PCI-X 64bit/66MHz\n3x 64-bit/66-100MHz |
| PS/2 ports quantity |
1 |
Power
| Power supply type |
HotSwap, PFC |
Additionally
| Chipset |
Intel E7520 |
| Ethernet LAN (RJ-45) ports quantity |
2 |

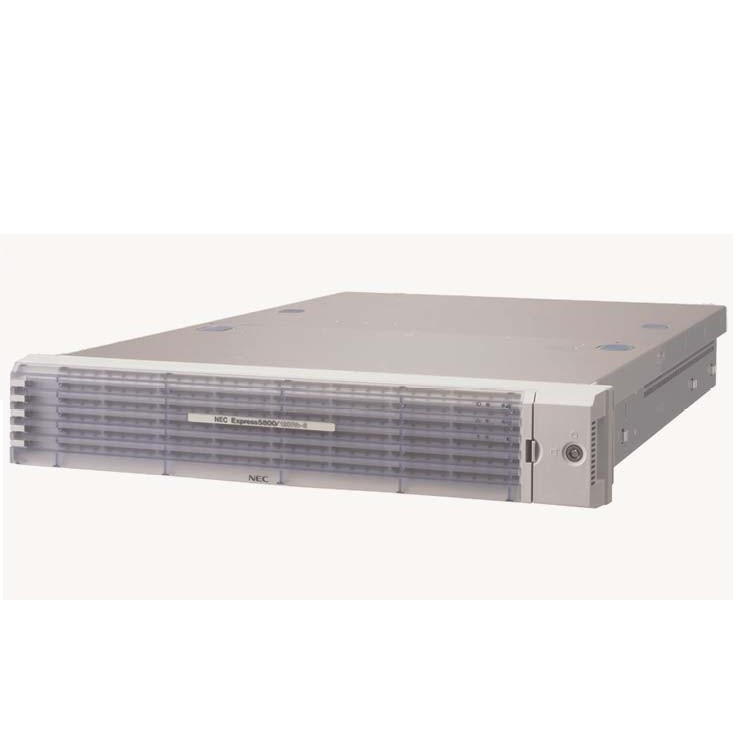

Express5800 120Rh-2 - Intel Xeon 2.8GHz, 1024MB RAM, 73GB Ultra 320 SCSI, Rack 2U, NL
Scaleable Performance
NEC Express5800/120Rh-2 is a system designed to deliver scaleable performance to data centers, workgroup environments or remote sites, for which space limitation is a prime consideration. It is especially intended to ASPs/ISPs for hosting Internet and Web applications, and to general corporations for application and infrastructure service consolidation.
Maximum Performance Network Computing Engine
With ECC and Chipkill enabled DDR2-400 SDRAM DIMMs, the memory capacity is scalable up to 16GB (2GB x8).
In addition, NEC Express5800/120Rh-2 supports Ultra 320 SCSI hard disk drives, with a large-scale capacity of up to 1.8TB (300GB x 6), enabling onboard RAID 0/1, without a separate disk array controller. RAID 5 is optionally supported. The on-board RAID availability prevents loss of important data and allows higher system availability in the event of a disk failure, while reducing the cost for the extra device.
Advanced Reliability & Management
To ensure continuous system operation, optional Hot-Swap redundant power supply and fans are supported. To assist a user in server management, NEC ESMPRO is included for easy system control. In addition, the Total Cost of Ownership (TCO) is optimized with a choice of Management board options, Standard or Advanced. For simple system installation, NEC EXPRESSBUILDER is attached as an installation support tool. Just by inserting the single CD-ROM and following a series of user-friendly customization menus, a system administrator can set up and configure the system with ease.
