Other features
| Lens system |
F = 1.74-2.18 mm, f=30.8-41.6 mm |
| Digital keystone correction |
H=+/-35 degrees, V=+/-40 degrees |
| Projector picture size (diagonal) |
0.7 - 12.7 m |
| Non-operating relative humidity (non-condensing) |
20 - 80% |
| Analogue video signal |
PAL/ PAL60/ SECAM/ NSTC/ NSTC 4.43/ PAL-N/ PAL-M |
| Resolution |
1024 x 768 pixels |
Projector
| Projector brightness |
4200 ANSI lumens |
| Projection technology |
LCD |
| Projector native resolution |
XGA (1024x768) |
Ports & interfaces
| Composite video in |
1 |
| DVI port |
Y |
| Component video (YPbPr/YCbCr) in |
1 |
Lamps
| Service life of lamp (economic mode) |
3000 h |
| Service life of lamp |
2000 h |
| Bulb power |
300 W |
Performance
| Vertical scan range |
48 - 120 Hz |
Additionally
| S-Video in |
1 |
| Display scan frequency (horizontal) |
15 - 100 kHz |
| RS-232 port |
1 |

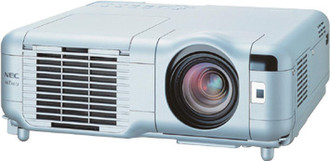

MT1075 - Projector LCD, 4200 ANSI lumens, XGA 1024 x 768, 800:1
NEC's most advanced technologies provide the many superior functions that make the MT1075 easy to operate, featuring Auto Focus, Auto Wall Colour Correction, and Auto 3D Reform with built-in image sensor.
- XGA (1024 x 768) resolution
- Exceptional Brightness: 4200 ANSI lumens
- Convenient Auto Focus
- Innovative Auto Wall Colour Correction
- Wired and Wireless LAN Capability
- 3D Reform Correction for Unrestricted Installation Layout
- The Auto 3D Reform automatically adjusts image size to screen size
- Comprehensive Array of Input/Output Terminals for Immediate Connectivity
- DVI Input Support
- Long Life Lamp: 4000 hours (with optional MT60LPS Extended Life Lamp)
- Quietness: Less than 29 dB (with optional MT60LPS Extended Life Lamp)
- Short Focus: Throwing distances are 100 inches at 3m and 60 inches at 1.8m. (Zoom ratio = 1.35)
