TV tuner
| Analog signal format system |
NTSC |
| Tuner type |
Analog & Digital |
| Digital signal format system |
ATSC |
Display
| Display diagonal |
55 " |
| Contrast ratio (typical) |
4000:1 |
| Viewing angle, horizontal |
178 ° |
| Viewing angle, vertical |
178 ° |
| Response time |
6.5 ms |
| LED backlighting type |
Edge-Lit LED |
| HD type |
Full HD |
| Screen shape |
Flat screen |
| Display brightness |
350 cd/m² |
| High frequency rate |
120 Hz |
| 3D |
N |
| Aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
Audio
| Built-in subwoofer |
N |
| Number of speakers |
2 |
| RMS rated power |
20 W |
| Built-in speaker(s) |
Y |
Operational conditions
| Operating relative humidity (H-H) |
10 - 80% |
| Storage temperature (T-T) |
0 - 40 °C |
| Storage relative humidity (H-H) |
5 - 85% |
Performance
| Card reader integrated |
N |
| Parental control |
Y |
| Optical disc player type |
Not included |
| Image formats supported |
JPG |
Management features
| Sleep timer |
Y |
| Smart modes |
Dynamic, Energy saving, Theater |
Weight & dimensions
| Width (with stand) |
1242.1 mm |
| Width |
1242.1 mm |
| Height |
734.1 mm |
| Weight with stand |
23400 g |
| Depth |
63.5 mm |
| Weight |
20100 g |
| Depth (with stand) |
254 mm |
| Height (with stand) |
789.9 mm |
Packaging content
| Cables included |
AC, VGA |
| Manual |
Y |
| Handheld remote control |
Y |
| Desktop stand |
Y |
| Batteries included |
Y |
Ports & interfaces
| PC in (D-Sub) |
Y |
| DVI port |
N |
| Common interface (CI) |
N |
| Common interface Plus (CI+) |
N |
| Headphone outputs |
1 |
| VGA (D-Sub) ports quantity |
1 |
| HDMI ports quantity |
3 |
| USB 2.0 ports quantity |
1 |
| Component video (YPbPr/YCbCr) in |
1 |
Power
| Power consumption (typical) |
122 W |
| Power consumption (standby) |
0.5 W |
Ergonomics
| VESA mounting |
Y |
| VESA mounting interfaces |
400 x 400 mm |
Additionally
| Colour of product |
Black |
| RS-232 port |
1 |
| Ethernet LAN connection |
N |
| Operating temperature range (T-T) |
0 - 40 °C |
| Energy efficiency compliance |
Unspecified |
139.7 cm (55 ") , 1920 x 1080, 4000:1, 350 cd/m2, 6.5 ms, NTSC/ATSC

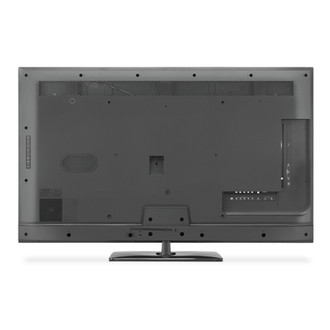

The 55” NEC E554, an LED edge-lit, commercial-grade display, is ideal for education, corporate and other digital signage applications. Compared to previous generation displays, this model’s edge-lit LED backlighting allows for reduced power consumption, a thinner depth, a smaller bezel and lighter weight. Full HD resolution delivers stunning image quality for a variety of content, and the E554’s integrated tuner and speakers allow users to enjoy high-definition broadcast capabilities. This display can be monitored remotely through the RS-232C networking feature, which also provides customers the ability to synchronize multiple displays, remotely power on/off and lock out external buttons to prevent unwanted changes in the display’s setting.
- LED backlighting technology reduces power consumption and allows for a slimmer cabinet depth.
- Thinner bezel improves display's aesthetics.

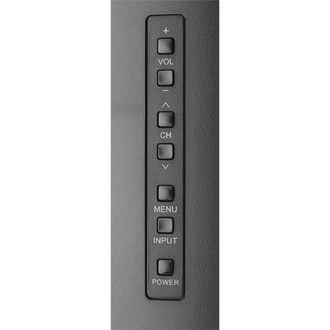

- RS-232C allows users to lock out external buttons, synchronize multiple displays and remotely power on/off displays.
- USB media player allows users to view .jpg images.
- Full 1080p high-definition resolution provides stunning detail.
- Built-in NTSC/ATSC analog/digital tuner allows for high-definition broadcast capabilities.
- Built-in, low-profile 10W speakers enhance the experience with superior sound.
