Display
| Display diagonal |
80 " |
| Aspect ratio |
16:9 |
| Supported video modes |
480p, 576i, 576p, 720p, 1080i, 1080p, 480i |
| Contrast ratio (dynamic) |
5000:1 |
| Response time |
4 ms |
| Screen format adjustments |
16:9 |
| LED backlighting type |
Edge-LED |
| Screen shape |
Flat screen |
| Viewing angle, horizontal |
178 ° |
| Viewing angle, vertical |
178 ° |
| Display brightness |
400 cd/m² |
| HD type |
Full HD |
| Display resolution |
1920 x 1080 pixels |
| High frequency rate |
85 Hz |
| 3D |
N |
| Supported graphics resolutions |
1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA) |
Packaging content
| Cables included |
AC, DVI |
| Manual |
Y |
| Handheld remote control |
Y |
| Camera included |
Y |
| Desktop stand |
Y |
| Quick start guide |
Y |
Certificates
| Certification |
C-tick; CE; FCC Class B; PSB; TÜV GS; UL/C-UL or CSA; VCCI |
| RoHS compliance |
Y |
Ports & interfaces
| PC in (D-Sub) |
Y |
| DVI port |
Y |
| Common interface (CI) |
N |
| DVI-D ports quantity |
1 |
| Common interface Plus (CI+) |
N |
| Audio (L,R) in |
2 |
| Audio (L,R) out |
1 |
| HDCP |
Y |
| USB 2.0 ports quantity |
1 |
| HDMI ports quantity |
2 |
Power
| Power consumption (typical) |
430 W |
| Power consumption (standby) |
1 W |
| Annual energy consumption |
203 kWh |
Ergonomics
| VESA mounting |
Y |
| VESA mounting interfaces |
400 x 400 mm |
Operational conditions
| Operating relative humidity (H-H) |
20 - 80% |
Weight & dimensions
| Depth |
87 mm |
| Weight |
61000 g |
| Width |
1836 mm |
| Height |
1061 mm |
Audio
| RMS rated power |
20 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Y |
Management features
| On/Off timer |
Y |
| Sleep timer |
Y |
| Control type |
Buttons |
| On Screen Display (OSD) |
Y |
Additionally
| RS-232 port |
1 |
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| Colour of product |
Black |
| Display diagonal |
203 cm |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Operating temperature range (T-T) |
0 - 40 °C |
| Energy efficiency compliance |
A+ |

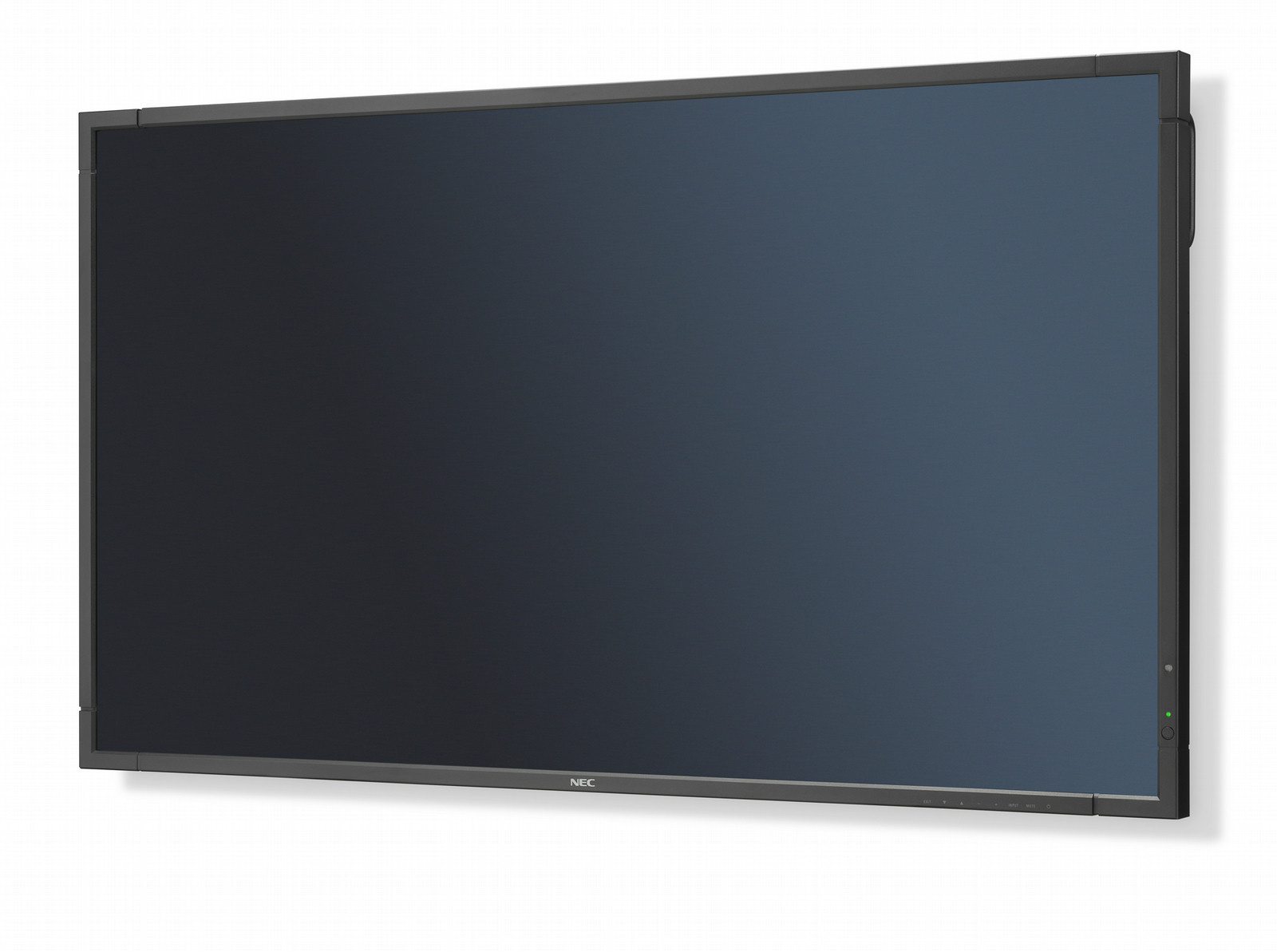

LED TV, 203.2 cm (80 ") (203cm), Full HD (1920x1080), 16:9, HDMI, DisplayPort, USB, 430W, 61.0kg + Logitech ConferenceCam CC3000e
The NEC MultiSync® E805 succeeds in balancing impressive visual performance with a budget-oriented large format presentation without compromise. The 80 inch (203cm) LCD-panel features a detail-rich FullHD resolution, eye-pleasing black levels for ergonomic viewing and state-of-the-art connectivity optimized to the needs of corporate applications. Thanks to an integrated ambient light sensor and latest LED backlight technology, the model features an amazingly low TCO with maintenance-free operation.
This display is ideal for corporate conferencing and education usage as well as digital signage applications in museums, hospitality and retail environments with operating hours limited to 12/7.
BENEFITS
- Programmable Ambient Light Sensor - for reduced power consumption and eye pleasing brightness levels.
- Future Ready Connectivity - featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
- Slim Design and Integrated Speakers - the aesthetic design is pleasing to the eye and enables easy, low cost installation.
- Reduced Installation and Operating Costs - featuring LED backlight technology the display is highly energy efficient with a low power consumption, longer backlight lifetime and a lighter design for easy and flexible transportation, mounting and integration.
- Free Download of Multi-Display Management Software - with NaViSet Administrator 2 you can manage all your connected display devices from a centralized location.
- Easy remote operation - thanks to full control via RS232 and LAN for effort-less maintenance and asset management in large or remote installation.
- Impressive FullHD LCD technology - eye-pleasing black levels and impressive contrast ratios for ergonomic viewing and less fatigue in conferencing scenarios.
- Special Characteristics - Automatic Alarm E-Mails; Colour temperature mode; Image flip; NaViSet Administrator 2; Point Zoom Function; Scheduler; Ambient light sensor; Annual energy consumption: 203 kWh (based on 4 operating hours per day); Carbon savings meter; ECOMode; Energy efficiency class: A+
