Display
| Vertical scan range |
25.2 - 85 Hz |
| Active display area (W x H) |
1018 x 573 mm |
| HD type |
Full HD |
| Native aspect ratio |
16:9 |
| Display type |
LED |
Ports & interfaces
| DVI port |
Y |
| Remote (IR) input |
1 |
| Ethernet LAN data rates |
100 Mbit/s |
| VGA (D-Sub) input ports |
1 |
| DVI-D ports quantity |
2 |
| Audio (L,R) out |
1 |
| RS-232C |
Y |
| USB port |
N |
| RS-232 interface |
Y |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
2 |
Design
| Bezel width (top) |
32.8 mm |
| Bezel width (bottom) |
32.8 mm |
Technical details
| Panel type |
AMVA3 |
| LED backlighting type |
Edge-LED |
| Ambient light sensor |
Y |
| Portrait mode |
Y |
| BNC output ports |
1 |
Packaging data
| Handheld remote control |
Y |
Performance
| HDCP |
Y |
| Operating hours (hours/days) |
16/7 |
| On Screen Display (OSD) |
Y |
Other features
| Annual energy consumption |
112 kWh |
Additionally
| Display scan frequency (horizontal) |
31.5 - 91.1 kHz |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |
| Energy efficiency compliance |
A |
116.84 cm (46 ") AMVA3 Edge LED, 16:9, 480 cd/m², 4000:1, 1920 x 1080, D-sub, DisplayPort, DVI-D x 2, HDMI, LAN, BNC

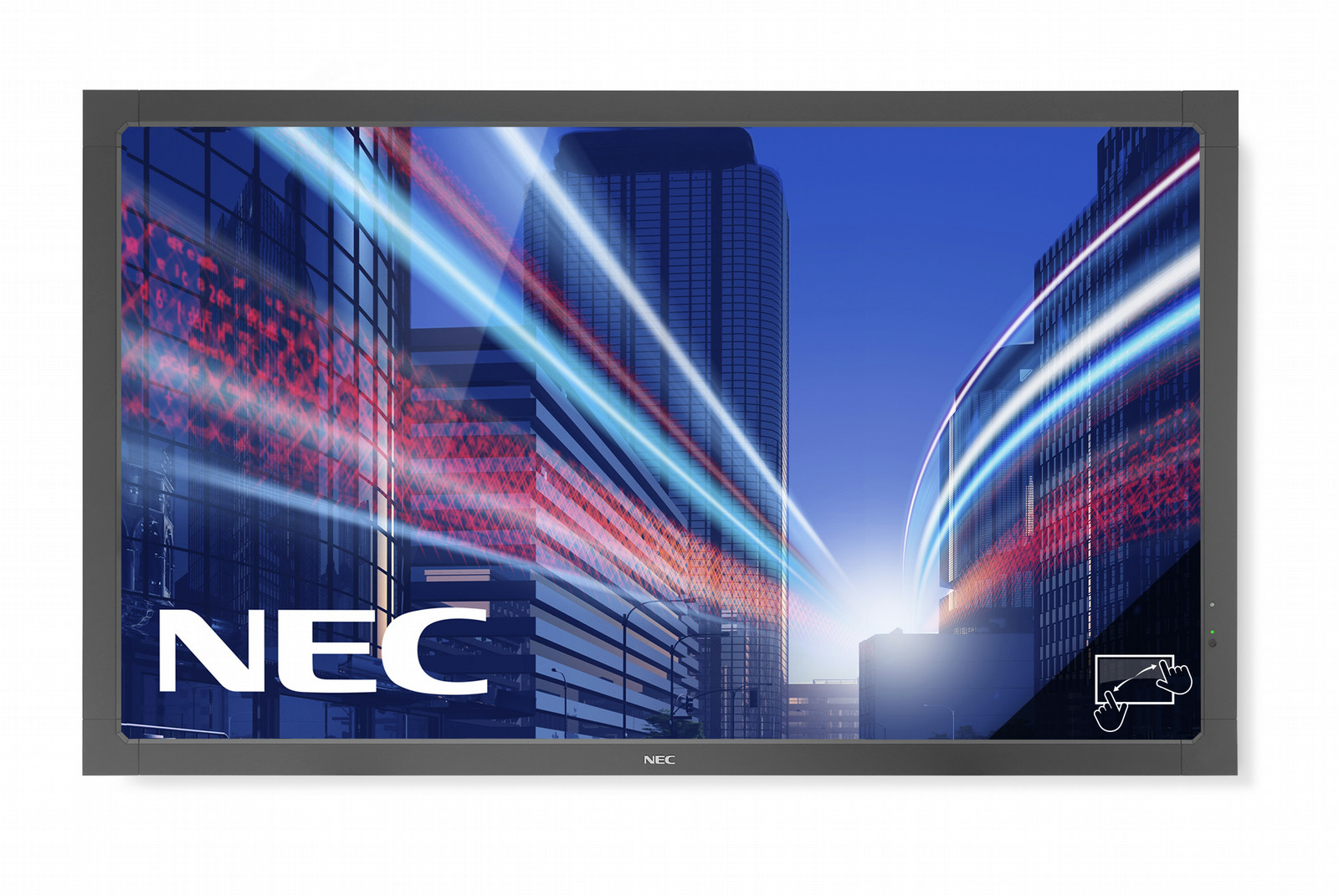

NEC MultiSync® V463-TM is the new multi-touch product of NEC’s V Series boasting 46" in size and delivering true multitouch support with up to 5 simultaneous touch points. Thanks to a unique anti reflective coating, reflections are reduced to a minimum which significantly increases the readability of the content shown. The OPS option slot for e.g. a slot-in PC helps to save space and does away with any cables including the USB cable external PC solutions may need.
V463-TM is ideal for retail signage, way finding, conference room and education applications delivering short response times and a high level of accuracy.
- Multi-Touch - true multi-touch support with up to 5 simultaneous touch points, gesture control for Windows 7/8, Mac and Linux driver support.
- Optical Camera Technology - with 4 integrated cameras for quick touch response and perfect usability.
- Comprehensive Touch Usage - possible usage with Finger, Stylus and Gloves.
- Protective Glass - single anti-reflection coating for perfect visibility, full-tempered glass for security.
- Future Ready with OPS Cable Free Expansion - Upgrade the power of your display at any time without the need for external cables or devices.
- Free DisplayNote Presenter Licence - present, share, collaborate with multiple participants across multiple devices (available until May 2014).
- Free Download of Multi-Display Management Software - with NaViSet Administrator 2 you can manage all your connected display devices from a centralized location.
- Special Characteristics - Advanced fan control; Automatic Alarm E-Mails ; Copy display settings through RS232; DICOM support; FREE DisplayNote Presenter; Hardware colour calibration possible; Input name adjustment; Matrix memory; OSD rotation for portrait mode; PIN as theft protection; Scheduler; Screen saver functions; TileMatrix (10 x 10); User controllable back-up fans with 2 speeds; User input priority definition; Various picture in picture options
