Ports & interfaces
| Microphone in |
Y |
| Headphone outputs |
1 |
Processor
| L3 cache |
2 MB |
| Processor cores |
2 |
| Processor frequency |
1.6 GHz |
Video
| On-board graphics adapter |
Y |
Memory
| Internal memory |
2 GB |
| Internal memory type |
DDR3-SDRAM |
Storage
| Storage media |
SSD |
| Card reader integrated |
Y |
| Total storage capacity |
32 GB |
Additionally
| Chipset |
Intel HM65 Express |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |
Intel Celeron B810E (2M Cache, 1.60 GHz), 2GB DDR3, 32GB SSD, Intel HD, Gigabit Ethernet, 2 x USB 2.0, mini DP, 900 g, Black, Windows WS7E

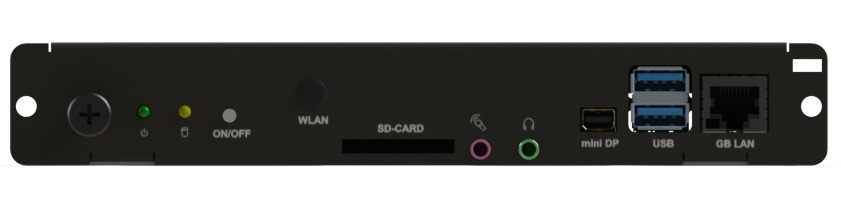

<b>Slot-in PC with Intel® Celeron 2 x 1.6 GHz CPU STv2 (Sandy Bridge)</b>
Slot-In PC - a complete PC solution, compatible with NEC Public Displays with STv2 or DualSlot (using the optional Dual Slot Adapter) and also NEC PX series and PH series installation projectors.
- Intel Celeron 1.6 GHz Dual Core processor (sandy bridge).
- No cables - all connectors inside the display.
- Slot-in PC running while display is switched off.
- Long product lifecycle enables homogenous installation even for long rollouts.
- Compatible with NEC/Intel OPS standard for option slot products.
- Compatible with all NEC Public Displays with option slot STv2 or dual slot and NEC PX series and PH series projectors.
