Other features
| Supported data transfer rates |
11, 54 Mbp |
| Maximum data transfer rate |
0.054 Gbit/s |
| xDSL connection |
N |
| Interface |
LAN, WAN |
| Outdoor range |
300 m |
Security
| Authentication method |
RADIUS Server, Clone MAC, DDNS |
| MAC address filtering |
Y |
Management features
| Universal Plug and Play (UPnP) |
Y |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| Supported network protocols |
PPTP, IPSec, FTP, ICMP, SMTP, POP3, DNS, Telnet, HTTP, HTTPS, H.323, SIP, Real Audio, CuSeeMe, AOL, Games |
Networking
| Management protocols |
WAN, LAN, DMZ, AP, UPnP, ALG, WDS |
Additionally
| Indoors max range |
100 m |
| Ethernet LAN connection |
Y |
| Filtering |
Client, URL/IP |
| Ethernet LAN (RJ-45) ports quantity |
4 |

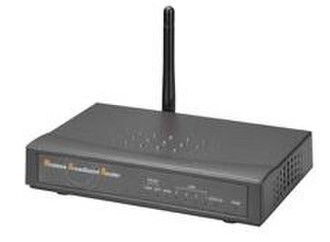

IEEE 802.11g Wireless AP Router
General Descriptions
WR514R2 is a full-featured wireless broadband router that establishes wireless connection from AP then provides direct connection to local area network or individual PC with build-in 4-port switch. WR514R2 uses advanced Realtek broadband router chipset with on board Realtek wireless LAN chipset solution provides complete set of industry standard features for high-speed Internet access. WR514R2 offers easy installation and cost-effective connection for corporate, SOHO and residential users.
WR514R2 wireless broadband router provides maximum transfer rate up to 85 Mbps from WAN to LAN, 100 Mbps from LAN to LAN and 11/54 Mbps through wireless channel. WR514R2 provides password protected configuration function guarantees the best security on CO settings. No need user intervention. Included DHCP server assigns IP addresses to all workstations on your LAN.
This product is made in ISO9001 approved factory. WR514R2 Wireless Broadband Router complies with FCC part15 regulations and CE approval.
Features and Benefits
- Maximum transfer rate up to 85 Mbps from WAN to LAN, 100 Mbps LAN to LAN and 11/54 Mbps through wireless channel enables High-speed access to ISP or corporate network.
- Friendly GUI Configuration and Management software.
- Supports IEEE 802.3 full duplex flow control.
- Built-in DHCP server automatically assigns IP address to all workstations on your LAN.
- 802.11b/802.11g provides WEP Encryption, WPA, WPA2 and SSID functions for security purpose.
- Supports MAC filter, Client filter, URL and IP filter blocking and Hacker pattern detection.
- Supports ALGs (Microsoft NetMeeting, MSN Messenger, Windows Media Player, DirectX 8.0, PPTP pass through, IPSec pass through, FTP, ICMP, SMTP, POP3, DNS, Telnet, HTTP, HTTPS, H.323, SIP, Real Audio, CuSeeMe, AOL, and Games).
