Protocols
| Supported network protocols |
DHCP, IGMP |
| DMZ support |
Y |
Networking
| Management protocols |
HTTP, SNMP, CWMP |
Other features
| Rack mounting |
N |
| Mobile network connection |
N |
| Upstream data rate |
1 Mbit/s |
| Downstream data rate |
24 Mbit/s |
| xDSL connection |
Y |
Wireless LAN features
| WLAN data transfer rate (max) |
300 Mbit/s |
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Web-based management |
Y |
| Reset button |
Y |
| Quality of Service (QoS) support |
Y |
Security
| VPN support |
PPTP, L2TP, IPsec |
| MAC address filtering |
Y |
Antenna
| Antenna type |
External |
| Antennas quantity |
2 |
| Antenna gain level (max) |
5 dBi |
Ethernet LAN features
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Ethernet LAN interface type |
Fast Ethernet |
Ports & interfaces
| RJ-11 ports quantity |
1 |
| DC-in jack |
Y |
Additionally
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |
| On/Off switch |
Y |
| Ethernet LAN connection |
Y |

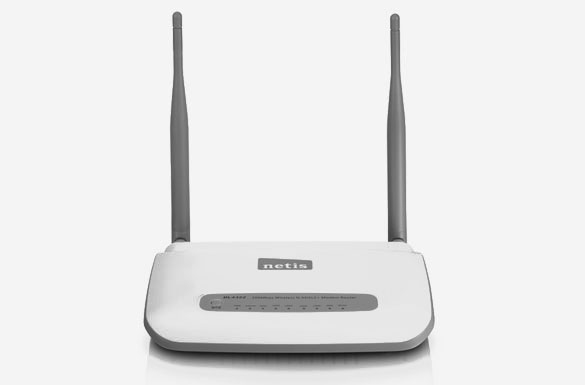

300Mbps Wireless N ADSL2+ Modem Router, 4x 10/100Mbps RJ45 LAN, 1x RJ11 ADSL Port
The netis DL4322 is a 3-in-1 device that combines the functions of a high speed ADSL2+ modem, 4-port NAT router and wireless N access point. It is designed to provide end-users with a one-stop solution to acquiring and sharing high-speed Internet access over a wired/wireless network. Supporting the latest ADSL standards, the DL4322 brings with it much higher speed than dial-up connections. It also provides some practical functions, such as Port Mapping for IPTV, Ethernet WAN, SNMP, IPv6, TR-069 and more. With this product, users can now enjoy more kinds of heavy bandwidth consuming applications like wireless HD video streaming.
- High speed ADSL2+ modem, 4-port NAT router and wireless N access point in one device
- ADSL2/2+ standards ensuring high-speed Internet access up to 24Mbps downstream
- Powerful wireless N speed up to 300Mbps
- Port mapping function ensuring wonderful IPTV experience
- Ethernet WAN offers additional connectivity option for Cable or Fiber modem
- Built-in firewall to safeguard home network from potential Internet attacks
- IPv6 supported for improved network usability and experience
- 4KV super lightning protection to avoid device damage caused by tough thunderstorms
- Easy setup wizard providing quick and hassle free installation
