Security
| VPN support |
PPTP, L2TP, IPsec |
| MAC address filtering |
Y |
Networking
| Network address translation (NAT) |
Y |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| WPS push button |
Y |
| Web-based management |
Y |
Ethernet LAN features
| Auto MDI/MDI-X |
Y |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Protocols
| DMZ support |
Y |
| Supported network protocols |
IPv6, PPTP, L2TP, IPsec, ATM, PPP |
Wireless LAN features
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
900 Mbit/s |
| WLAN data transfer rate (first band) |
300 Mbit/s |
| WLAN data transfer rate (second band) |
900 Mbit/s |
DSL features
| DSL specification |
8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, 11ac |
| ADSL2 |
Y |
| VDSL |
Y |
| ADSL2+ |
Y |
| VDSL2 |
Y |
| ADSL |
Y |
WAN connection
| Ethernet WAN |
Y |
| 3G/4G USB modem compatibility |
Y |
| DSL WAN |
Y |
| SIM card slot |
N |
Antenna
| Antenna type |
Internal |
| Antenna gain level (max) |
5 dBi |
| Transmit power |
0 - 20 dBmW |
| Antennas quantity |
4 |
Performance
| Firmware upgradeable |
Y |
| Memory card slot(s) |
N |
Ports & interfaces
| USB port |
Y |
| RJ-11 ports quantity |
3 |
| DC-in jack |
Y |
Additionally
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
5 |
VDSL2/ADSL2+/ADSL2/ADSL, 900 Mbps, 4x 5dBi, 3x RJ-11, 4x RJ-45 LAN, 1x RJ-45 WAN, 2x USB 2.0, 185 x 25 x 170 mm

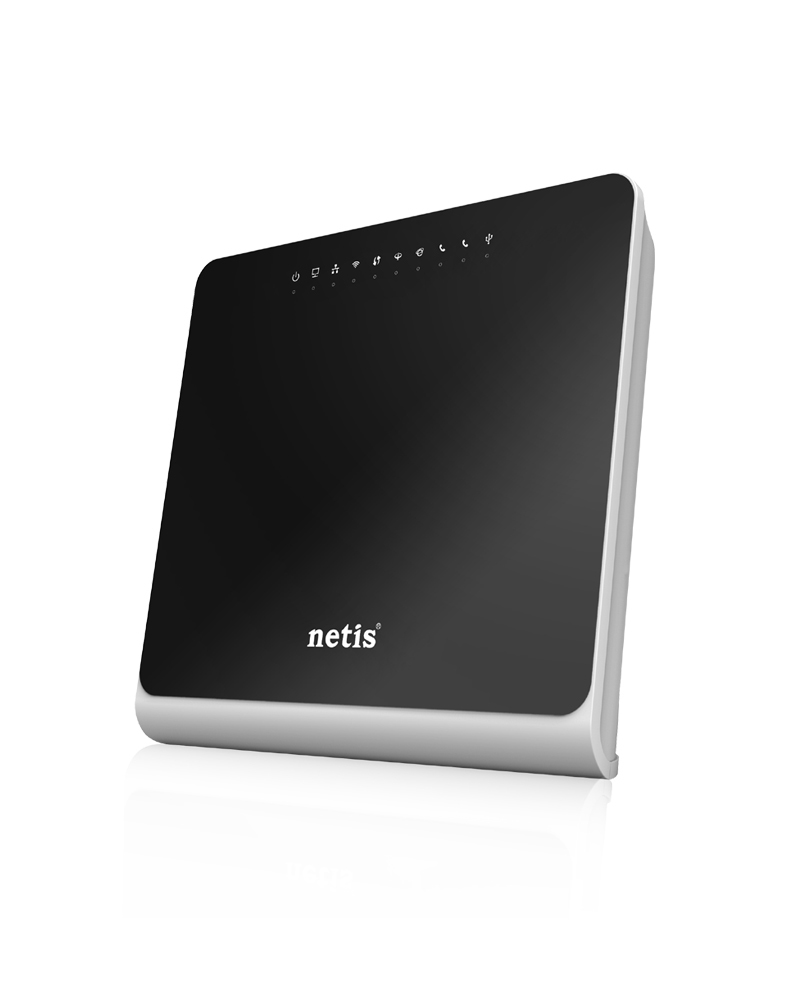

DL4480V is a VDSL2 4-in-1 device that combines the functions of high speed VDSL2 modem, 4-port NAT router, VoIP gateway and wireless AC access point. It is designed to provide end-users an one-stop solution to acquiring and sharing high-speed Internet access over wired/wireless network. Supporting the latest VDSL standards, brings with it much higher speed than ADSL2+. It is equipped with the next generation 802.11AC Wi-Fi technology, will offer you simultaneous dual band connection with 900Mbps wireless speeds over the crystal clear 5GHz band and 300Mbps over the 2.4GHz band, ideal for faster downloading, online gaming, Internet calling and HD video streaming. All Gigabit port for WAN/LAN ,compared with the FE port, transmission speed increased by 10 times . With the VoIP function,users can make calls though the Internet and save communication fee. With two USB port for 3G/4G dongles or USB storage.
Long-Range 2.4GHz & Interference-Free 5GHz
The netis DL4480V works on both 2.4GHz and 5GHz wireless bands simultaneously. It enables you to do general tasks like web surfing, e-mailing and file sharing on 2.4GHz band. Meanwhile, it avoids interference on 5GHz band, offering a powerful performance on wireless gaming, HD media streaming, and VoIP phone calling.
Multiple 4 Internal Antennas
Equipped with 2 * 2.4GHz and 2*5GHz internal 3dBi chip antennas, the netis DL4480V ensure a wide range. This allows you to enjoy the wireless freedom with incredible signal and coverage in any large home or office.
Dual-Core CPU
The DL4480V is Equipped with an faster 600MHz dual-core CPU which can avoid overloading on router and successfully handle multi-tasks.
Four-layer PCB & Excellent Circuit Layout
With four-layer heavy gold PCB and excellent circuit layout, the DL4480V features features a much higher stability, wider range and stronger anti-interference ability than normal networking devices.
Full Gigabit Ports
The DL4480V offers 5 10/100/1000Mbps Ethernet ports for connecting main modem, wired computers, wired printers and other network devices at ultra-fast wired speeds, which is 10 times faster than conventional Fast Ethernet connections. wireless network.
USB2.0 for 3G/4G Dongles and USB Storage
With 2*2.0 ports, both USB ports support 3G/4G dongles, so you can stay connected without missing a beat. It can also support HDD up to 1TG, You can easily share a local printer, or a remote FTP server. Storing, accessing, and sharing files and media has never been easier.
Local Storage Sharing
Connect a USB storage device to the USB port and share files with different computers in your home or office network.
FTP Server
Access and share files located in the local USB hard drive via FTP Server while you’re away from home.
Media Server
Share music, videos and photos with the media player on compatible devices.
Quick setup & Multilingual UI
The netis DL4480V’s Web interface is very responsive, easy to use, and works in English, Turkey, Italy, Poland, and Russian.
