Data transmission
| Store-and-forward |
Y |
| MAC address table |
2000 entries |
| Switching capacity |
1 Gbit/s |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) power per port |
30 W |
| Total Power over Ethernet (PoE) budget |
60 W |
| Power over Ethernet plus (PoE+) ports quantity |
4 |
| Power over Ethernet (PoE) |
Y |
Networking
| Full duplex |
Y |
| MAC address auto-learning supported |
Y |
| MAC address auto-aging supported |
Y |
| Flow control support |
Y |
| 10G support |
N |
Power
| Input voltage |
48 V |
| Power supply included |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity |
4 |
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T |
1 Gbps, 510/100Mbps, 5x RJ-45 port, 4x PoE, IEEE 802.3u 100BASE–TX, IEEE 802.3 10BASE–T, IEEE 802.3at/af, 100 x 100 x 26 mm
5 Port Fast Ethernet PoE Switch/4 Port PoE/802.3at/af

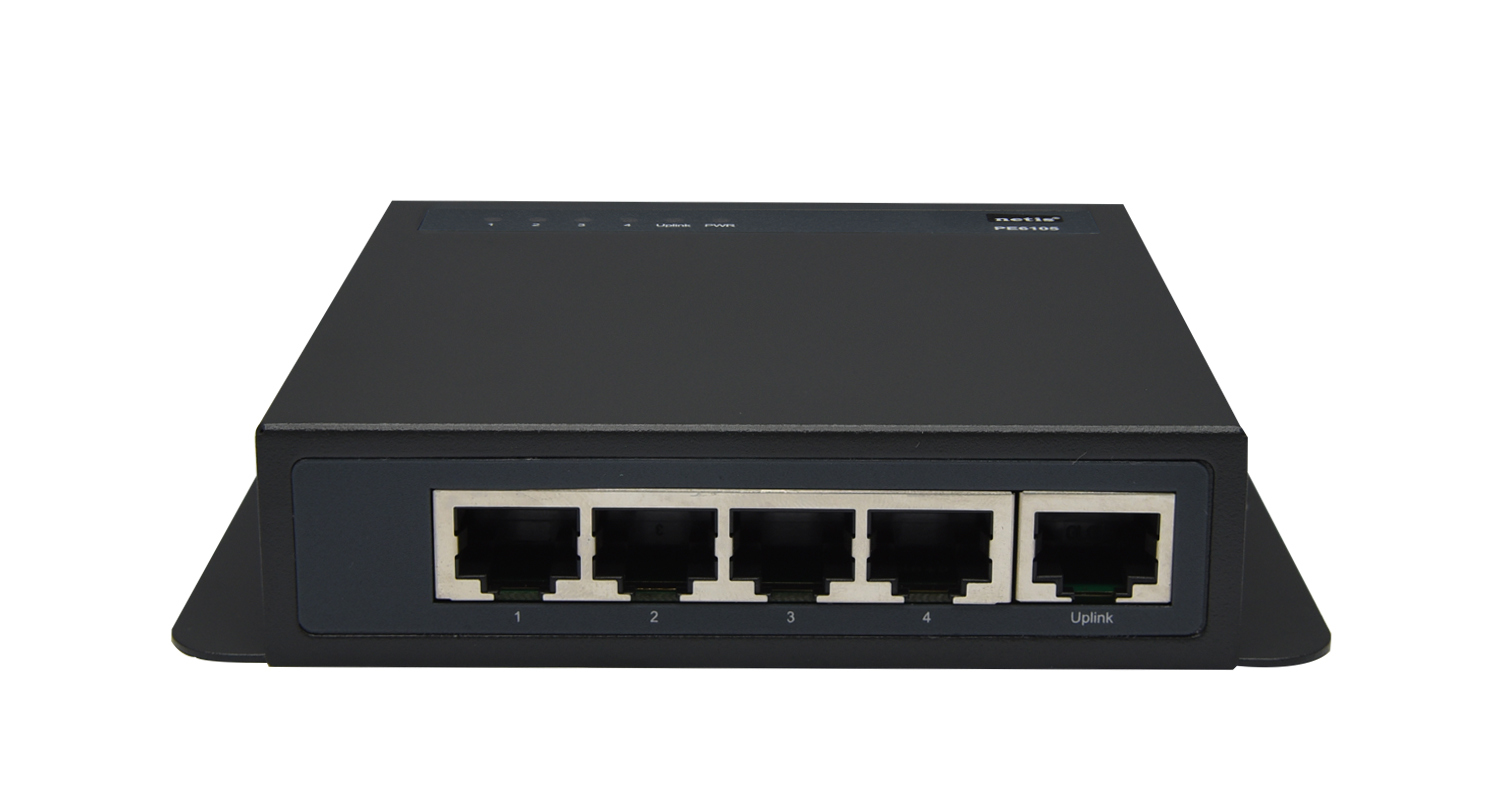

The netis PE6105 Fast Ethernet PoE Switch provides a great selection for expanding your home or office network. It provides 5 10/100Mbps RJ45 ports , port 1 to port 4 support Power over Ethernet(PoE) function.. It can automatically detect and supply power with the IEEE 802.3at/af compliant Powered Devices (PDs), like PoE APs, IP Phones,IP cameras, etc.In this case, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets.
