Data transmission
| MAC address table |
4000 entries |
| Store-and-forward |
Y |
| Switching capacity |
16 Gbit/s |
Power over Ethernet (PoE)
| Total Power over Ethernet (PoE) budget |
30 W |
| Power over Ethernet (PoE) ports quantity |
8 |
| Power over Ethernet (PoE) |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Networking
| Flow control support |
Y |
| 10G support |
N |
| Full duplex |
Y |

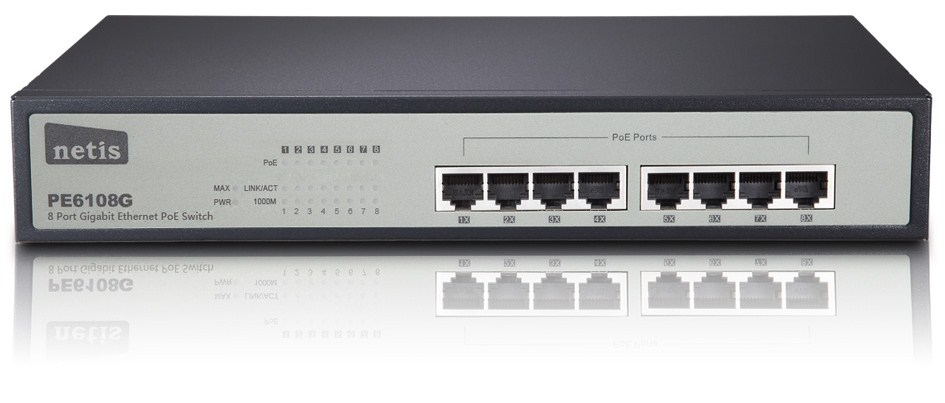

8-Port, Gigabit Ethernet, PoE, Black
The netis PE6108G Gigabit Ethernet PoE Switch provides a great selection for expanding your home or office network. All the 8 10/100/1000Mbps RJ45 ports support Power over Ethernet(PoE) function. It can automatically detect and supply power with the IEEE 802.3at/af compliant Powered Devices (PDs), like PoE APs, IP Phones,IP cameras, etc.In this case, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets.
- 8 10/100/1000Mbps Auto-Negotiation RJ45 ports, all with PoE function
- Complies with IEEE 802.3at/af standards
- Supports PoE power up to 30W for each PoE port, 120Wfor all PoE ports
- Supports PoE+ IEEE 802.3at/af compliant Powered Device (PD)
- Supports 4K MAC address table, MAC address auto-learning & auto-aging
- Supports IEEE 802.3x flow control for Full-duplex mode,Back-pressure flow control for Half-duplex mode ports
- Plug and play, no configuration required
- Power MAX LED to monitor the PoE power status
- Steel desktop design, with internal power supply
