Data transmission
| MAC address table |
8000 entries |
| Supported data transfer rates |
10/100/1000 |
| Maximum data transfer rate |
1 Gbit/s |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
6 |
| Copper ethernet cabling technology |
1000BASE-TX |

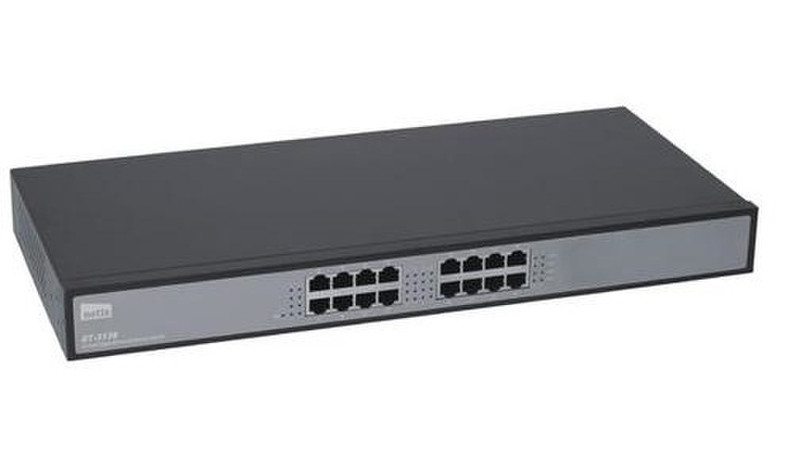

ST-3126 - 16 Ports 10/100/1000Mbps, IEEE802.3/u/ab/x, Auto MDI/MDIX, Full/Half-Duplex
The Netis 16-Port Rackmountable Gigabit Switch provides sturdy, easy-to-use, and high-performance upgrade to a 1000Mbps network. It also boosts your network performance up to full duplex data transfer.
- Compliant with the IEEE802.3 10Base-T Ethernet ,IEEE802.3u 100Base-TX, IEEE802.3ab 1000BASE-T specifications
- 32Gbps switching fabric capacity
- 16 port 10/100/1000Mbps TX Auto-Negotiation Gigabit Switch
- Full/Half-Duplex capability on each TX port(only support full duplex in 1000M)
- IEEE802.3x standard flow control for Full-duplex, optional Back pressure function for Half-duplex operation
- Support crossover detection and auto correction in 10 BASE-T/100 BASE-TX
- Support TP interface Auto MDIX function for auto TX/RX swap
- Support up to 8K MAC addresses
- Support packet length 9216 bytes jumbo frame packet forwarding at wired speed
- LED indicators for simple diagnostics and management
