Data transmission
| MAC address table |
8000 entries |
| Switching capacity |
4.8 Gbit/s |
| Number of VLANs |
4094 |
Networking
| Port mirroring |
Y |
| Broadcast storm control |
Y |
| VLAN support |
Y |
| IGMP snooping |
Y |
| Auto MDI/MDI-X |
Y |
| Link aggregation |
Y |
| Spanning tree protocol |
Y |
| Flow control support |
Y |
| 10G support |
N |
Ports & interfaces
| Console port |
RS-232 |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| DC-in jack |
Y |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
Management features
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |

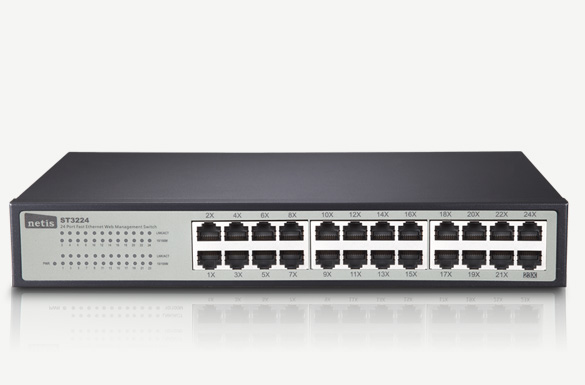

24 Port Fast Ethernet Web Management Switch
The netis ST3224 Fast Ethernet Web Management Switch provides an ideal networking solution for office and department applications. It fully complies with IEEE 802.3/802.3u Ethernet standards, providing 24 10/100Mbps UTP/STP RJ45 ports with auto-MDI/MDIX. It also provides powerful wed-based management functions, including spanning tree, IGMP snooping, link aggregation, port mirroring, VLAN, QOS and more. It's a perfect way to extend your network structure.
- 24 10/100Mbps RJ45 ports
- Plug and play, Auto-Negotiation, Auto MDI/MDIX detection
- 4.8 Gbps switching fabric capacity
- Supports 8K MAC address table
- Quick and easy setup with Web-based management page
- Supports port configuration, including speed, duplex and flow control
- Supports 802.1q VLAN
- Supports QoS, Port Bandwidth Control
- Supports IGMP Snooping
- Supports port mirroring to monitor the incoming or outgoing traffic on a particular port
- Supports Broadcast Storm Control
- Steel desktop design, with internal power supply
