Management features
| Multicast support |
Y |
| Web-based management |
Y |
Data transmission
| MAC address table |
16000 entries |
| Switching capacity |
5.6 Gbit/s |
| Number of VLANs |
4094 |
Networking
| Port mirroring |
Y |
| Broadcast storm control |
Y |
| VLAN support |
Y |
| IGMP snooping |
Y |
| Auto MDI/MDI-X |
Y |
| Link aggregation |
Y |
| Spanning tree protocol |
Y |
| Flow control support |
Y |
| Full duplex |
Y |
| 10G support |
N |
Ports & interfaces
| Console port |
RS-232 |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Combo SFP ports quantity |
2 |
| DC-in jack |
Y |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
Security
| SSH/SSL support |
Y |
| Access Control List (ACL) |
Y |
Performance
| Packet buffer memory |
4 MB |
Protocols
| Management protocols |
SNMP, SSH, Telnet |
| Supported network protocols |
LLDP, DLDP, DHCP |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |

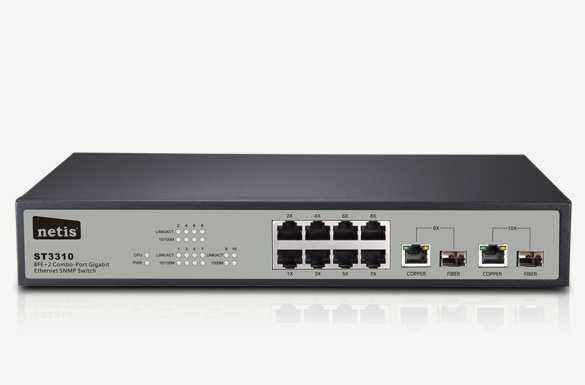

The netis ST3310 8FE+2 Combo-Port Gigabit Ethernet SNMP Switch is ideal for medium to large Internet bar or enterprise, and it fully complies with IEEE802.3/802.3u/802.3z Ethernet standards. It provides 8 10/100Mbps and 2 Combo Gigabit ports, supporting auto copper/fiber switching. It also provides powerful management functions, including 802.1p (QoS), DiffServ(QoS), IGMP Snooping, 802.1w (Rapid Spanning Tree), Link Aggregation, 802.1q (VLANs), 802.1x and more. It's a perfect way to ensure you a high-quality and stable network.
- 8 10/100Mbps Ethernet ports, 2 Combo Gigabit ports supporting both copper and SFP connections
- 5.6 Gbps switching fabric capacity
- IEEE 802.3x compliant Flow Control support for full duplex
- Supports IEEE 802.1Q VLAN
- Supports Spanning Tree Protocol
- Supports Port Mirroring, Flow mirroring
- Supports LLDP, DLDP
- Supports DHCP Snooping, Relay and Option 82
- Supports IGMP Snooping v1/v2/v3
- Supports powerful security functions like ACL, dynamic ARP inspection and more
- Provides high performance of Store-and-Forward architecture, broadcast storm control
- Supports SNMP v1/v2c/v3 , SSH v1/v2 switch management
