Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (second band) |
867 Mbit/s |
| WLAN data transfer rate (first band) |
300 Mbit/s |
| WLAN data transfer rate (max) |
867 Mbit/s |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
Antenna
| Antenna type |
External |
| Antennas quantity |
4 |
| Transmit power |
0 - 20 dBmW |
| Antenna gain level (max) |
5 dBi |
Ethernet LAN features
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Auto MDI/MDI-X |
Y |
Certificates
| Digital Living Network Alliance (DLNA) certified |
Y |
Management features
| WPS push button |
Y |
| Web-based management |
Y |
| Universal Plug and Play (UPnP) |
Y |
Protocols
| Supported network protocols |
IPv6, PPTP, L2TP |
| DMZ support |
Y |
WAN connection
| SIM card slot |
N |
| DSL WAN |
N |
| 3G/4G USB modem compatibility |
N |
| Ethernet WAN |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
5 |
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| AC adapter bundled |
Y |
2.4/5 GHz, 300/867 Mbps, 20 dBm, IEEE802.11 n/g/b/ac/a, IEEE802.3/3u/ab, 1x RJ-45 WAN, 4x RJ-45 LAN, 1x Fiber, 210 x 135 x 31 mm

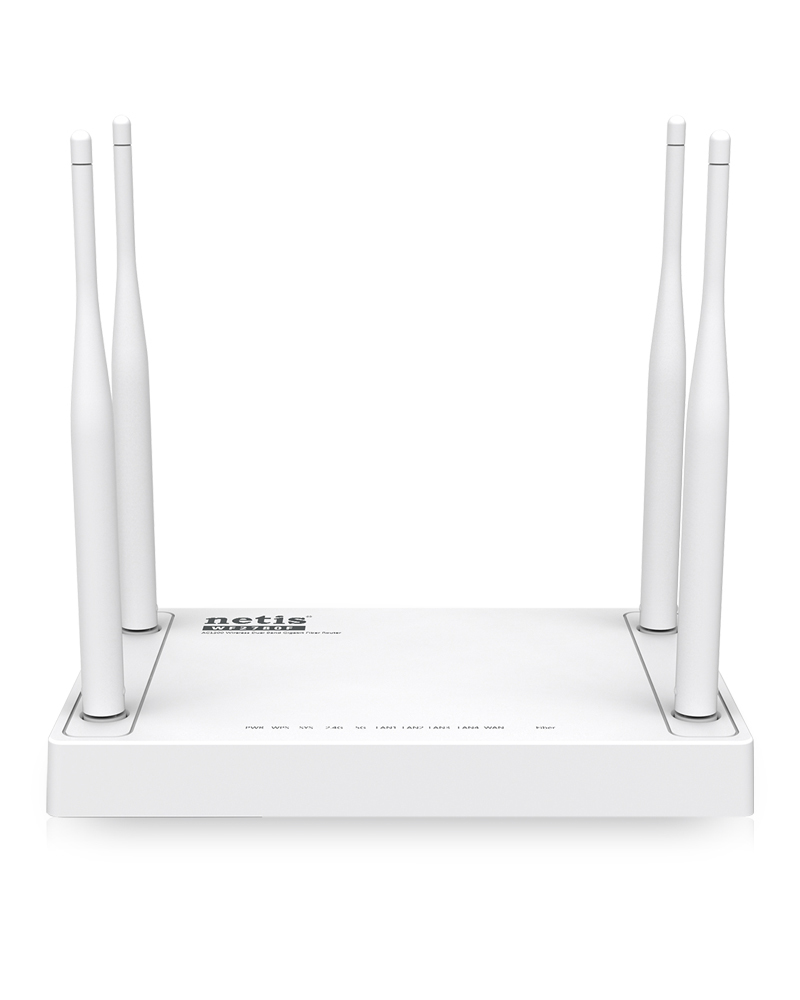

The netis WF2780F Wireless AC Fiber Router delivers next generation Wi-Fi at Gigabit speeds and creates a new Ethernet connection solution with fiber WAN. It is designed to provide a new choice of Ethernet access for end-users to acquiring and sharing high-speed Internet over a wired/wireless/fiber network. The innovative design allows users to use their own fiber modules with WF2780F to access a high speed fiber network. It also offers wireless speed up to 1200Mbps (N300Mbps + AC867Mbps) with simultaneous dual band 802.11AC Wi-Fi technology, avoiding interference and ensuring top Wi-Fi speeds and reliable connections. In addition, it provides some practical functions, such as Port Mapping for IPTV, SNMP, IPv6, TR-069, VoIP, VPN, WPS and more. With this product, users can now enjoy more kinds of heavy bandwidth consuming applications like wireless HD video streaming, high speed file transferring, and making conference calls.
<b>Fiber WAN</b>
<b>A New Ethernet Access Solution</b>
The netis WF2780F Wireless AC Fiber Router creates a new Ethernet connection solution with fiber WAN. It is designed to provide a new choice of Ethernet access for end-users to acquiring and sharing high-speed Internet over fiber network. The innovative design allows users to use their own fiber modules with WF2780F to access a high-speed fiber network.
<b>Ultra-Fast Wireless Speed</b>
Based on the next generation of Wi-Fi technology——802.11ac, the netis WF2780F delivers wireless speed up to 1300Mbps, up to 3X faster than 802.11n, allowing for multiple high-bandwidth-utilization applications such as online gaming and HD video streaming.
<b>Long-Range 2.4GHz & Interference-Free 5GHz</b>
The netis wireless Fiber router WF2780F works on both 2.4GHz and 5GHz wireless bands simultaneously. It enables you to do general tasks like web surfing, e-mailing and file sharing on 2.4GHz band. Meanwhile, it avoids interference on 5GHz band, offering a powerful performance on wireless gaming, HD media streaming, and online phone calling.
<b>Maximum Wireless Coverage and Reliability</b>
Equipped with more than one 2.4GHz external 5dBi antennas and 5GHz external 5dBi antennas, the netis WF2780F ensures a wide range across a greater distance. You can enjoy the wireless network anywhere within the coverage of incredible strong signal. It’s great ideal for SOHO users who require instant and convenient access to Internet without the restriction of connecting fibers or cables.
<b>Full Gigabit Ports—Ultra-Fast Wired Connection Speed</b>
The netis WF2780F comes with four 10/100/1000Mbps LAN ports and one 10/100/1000Mbps WAN port forconnecting main modem, additional wired computers, wired printers and other network devices at ultra-fast wired speeds, which is 10 times faster than conventional Fast Ethernet connections.
<b>Multiple Wireless Modes—Flexible WLAN Solutions</b>
The netis WF2780F supports AP, Repeater, AP+WDS, WDS, Client modes, providing various wireless solutions. Based on your current network status, you can choose a suitable wireless mode flexibly to build or extend the wireless network.
