Security
| Firewall security |
UDP, TCP |
| VPN support |
Pass through: PPTP, L2TP, IPSec\nServer: PPTP\nClient: PPTP, L2PT |
| Firewall |
Y |
| Security algorithms |
WDS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS |
| Filtering |
Y |
| MAC address filtering |
Y |
| IP address filtering |
Y |
Networking
| Port forwarding |
Y |
| Guest access |
Y |
Ethernet LAN features
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Ethernet LAN interface type |
Gigabit Ethernet |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Reset button |
Y |
| WPS push button |
Y |
| Web-based management |
Y |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| Supported network protocols |
CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, IPv4, IPv6 |
Wireless LAN features
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
IEEE 802.11ac |
| WLAN data transfer rate (max) |
1200 Mbit/s |
| WLAN data transfer rate (first band) |
300 Mbit/s |
| WLAN data transfer rate (second band) |
867 Mbit/s |
| Wi-Fi standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Design
| LED indicators |
Activity, LAN, Power, USB, WLAN |
WAN connection
| Ethernet WAN |
Y |
| 3G/4G USB modem compatibility |
N |
| DSL WAN |
N |
| SIM card slot |
N |
Software
| Mac compatibility |
Y |
| Mac operating systems supported |
Y |
Antenna
| Antenna type |
External |
| Antenna gain level (max) |
3 dBi |
| Antennas quantity |
2 |
Power
| Power over Ethernet (PoE) |
Y |
| Power source type |
AC |
Performance
| Firmware upgradeable |
Y |
| Memory card slot(s) |
N |
Additionally
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

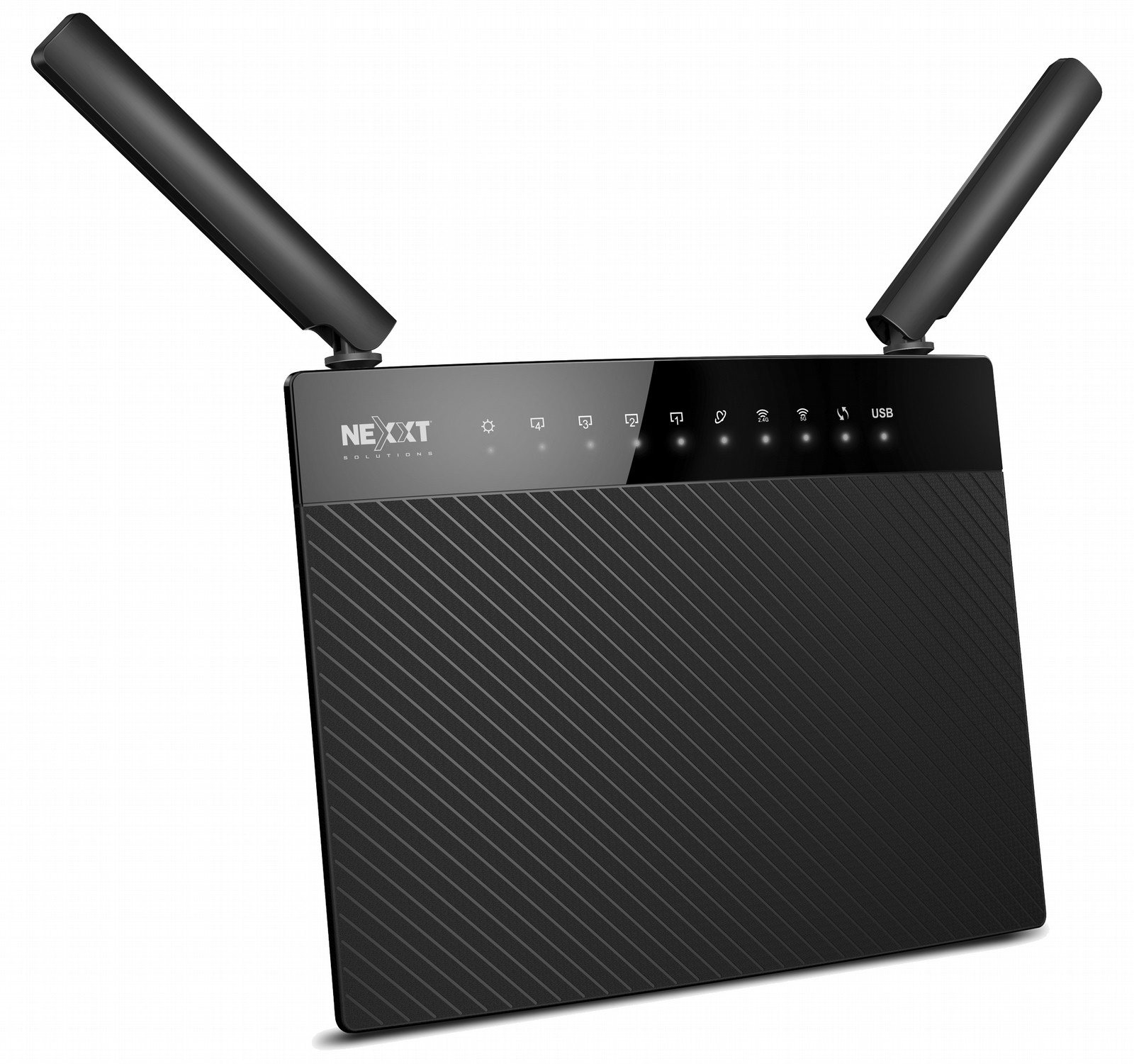

Acrux 1200 Dual Band Wireless-AC 1200Mbps Router with USB
The Acrux1200-AC is the new generation of Dual-Band Media Gigabit Wireless AC Routers to join the Nexxt Solutions family. Transmission speeds up to 1200Mbps, 867Mbps using the 5.0GHz band and 300Mbps on the 2.4GHz band, makes this an ideal solution for homes and small businesses with multiple devices.
It offers the ultimate in ‑le and print sharing thanks to the inclusion of a USB port, a key advantage in a media connected home or business. The Nexxt Cloud feature allows you to record to your USB attached storage remotely from anywhere outside of your network.
This state-of-the-art router supports the latest in IPTV technology, allowing you to receive your television service through the internet. Integrated bandwidth control prioritizes traffic to bandwidth intensive applications like HD streaming and critical ‑le sharing. Guest networks can be conveniently setup in order to segment and protect your personal network. The Acrux1200-AC has been designed to keep up with the modern day demand of homes and small offices.
