Data transmission
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
| Switching capacity |
4.8 Gbit/s |
| Throughput |
14880 Mpps |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
22 |
| DC-in jack |
Y |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Power
| Power consumption (max) |
15 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Networking
| 10G support |
N |
| Full duplex |
Y |

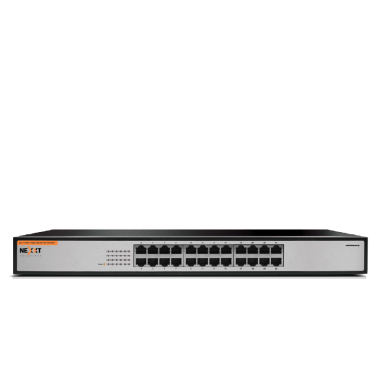

Gigabit Ethernet, 24x RJ-45, 4.8Gbps, 8000 MAC, Black
The 24-port Fast Ethernet switch is a multi-speed, versatile network device. This model features plug-&-play installation with no network configuration necessary. This high performance switch is the ideal solution for upgrading your existing network structure, specially in small and medium office environments. In addition, its convenient front LEDs display the traffic status in real-time, allowing users to manage and constantly monitor the activity on the entire network.
High-speed networking solution
Optimized to provide smooth and reliable access to network resources and critical applications by allowing you to connect up to twenty-four (24) devices to your network at speeds of 10/100 Mbps.
NWAY capability
All ports support auto-negotiation functions to intelligently detect and determine the optimum speed and operation mode.
Easy-to-understand LEDs
display real-time traffic status to monitor and diagnose the network.
MAC
MAC address auto-learning and auto-aging functions enable faster allocation of network resources.
Rack-mountable
Rack-mountable.
Ethernet standards
Complies with IEEE802.3, IEEE802.3u for greater adaptability to different Ethernet environments.
Architecture
Full wire speed Store-and-Forward technology instantly eliminates bad packets.
Flow control
Back pressure to operate on half-duplex mode, and IEEE 802.3x to operate on full duplex mode.
Hassle-free plug and play installation
No configuration required to integrate it into your network.
Specifications
- Twenty four (24) independent ports with 10Mbps and100Mpbs capability
- All ports support Auto-MDX/MDI-X to facilitate installation and troubleshooting
- Full wire Speed Store-and-Forward technology instantly eliminates bad packets
- Supports IEEE802.3x flow-control for full-duplex and back pressure flow-control for half-duplex to prevent the overflow of data frame
- Bridging capability of 10Mbps and 100Mbps segments
