Mounting
| Maximum weight capacity |
15 kg |
| Number of displays supported |
1 |
| Minimum VESA mount |
75 x 75 mm |
| Maximum VESA mount |
100 x 100 mm |

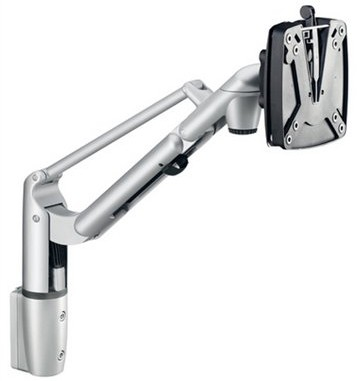

1.4 TSS-LiftTEC Arm 1 Monitor Arm Column Fixing, Weight (Capacity): 7-15kg
1 part monitor support arm with standard 75/100 monitor mount. Quick release. Gas spring for infinite adjustability. Reach = 365mm. Its height adjustment means that it can be positioned below the fixing level. Comes with TSS column adapter, to be used in conjunction with the TSS column range and a choice of models to support the monitor weight of 3-8kg or 7-15kg.
The high-grade NOVUS LiftTEC-Arm I of diecast aluminium is a design highlight among monitor arms.A gas pressure spring allows the monitor height to be infinitely adjusted with just two fingers. The arm can be pivoted 180° in the working area, has a reach up to 365 mm and a ball-joint for almost unlimited freedom of movement. Setting the user's ideal position is consequently child's play and a change of posture possible at any time.The quick-release mechanism with 1-lever operation allows any monitor weighing 3-8 kg or 7-15 kg to be attached without undue effort. It is equipped with the standard, widely used flat-screen mount 75 x 75 and 100 x 100 for the mounting of all normal flat-screens. The monitor cables are guided through cable clamps and the cable entry in the base.Comes with column adapter to fix to TSS columns.
The LiftTEC arm with convenient gas spring technology can be infinitely adjusted to any height with incredible ease.
The easy-action rotating joints can be adjusted to any position.
Cables are routed through the base of the LiftTEC arm.
Monitor is easy to attach using QuickRelease with single-lever operation. Ball-joint for selecting the optimum viewing angle as well as for utilising the monitor pivoting function.
Cable clips for perfect cable management along and i sideand in the support arm.
Adjustable gas springs allow the LiftTEC arm to be adjusted to the weight of the monitor.
The monitor is attached and released with effortless ease thanks to the new, simple Quick Release system with single-lever operation.
