Ports & interfaces
Record out |
1 |
Booth out (RCA) |
1 |
Master (L, R) out |
1 |
Line inputs (RCA) |
2 |
Phono inputs (RCA) |
3 |
Audio
Line Signal-to-Noise Ratio (SNR) |
100 dB |
Channels quantity |
3 |
Digital sound processing |
24 bit |
Number of EQ bands per channel |
3 |
Frequency range |
10 - 20000 Hz |
Outputs
Total Harmonic Distortion (THD) |
0.005% |

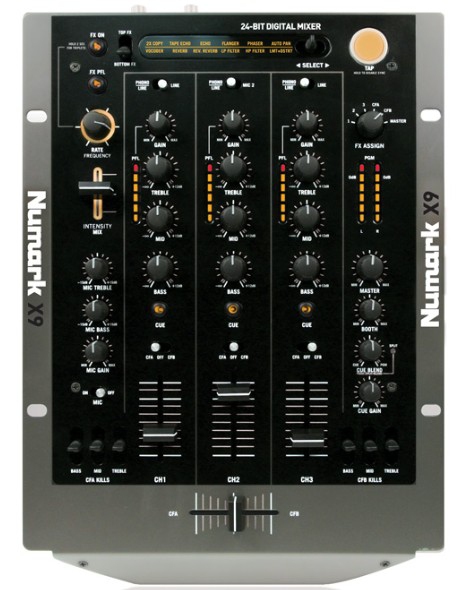

X9 Three-Channel Digital Scratch Mixer With Effects
DISTORTION-FREE, HEAVY PERFORMANCE.
X9 is a three-channel digital scratch mixer with BEAT SYNC digital effects. For any DJ who values the fidelity and precision of their records, CDs, or digital files, X9 employs a 100%-digital signal path that incorporates technology from the music studio pros at Alesis.
This 24-bit mixer faithfully transmits every detail and nuance of your music adding zero distortion and zero noise. Each channel features three-band rotary EQ which cut ad finitum. Two sets of assignable, three-band Kill switches add further to the frequency manipulation controls.
X9 kicks your mixes up a notch with twelve 24-bit advanced, assignable, digital BEAT SYNC effects: Vocoder, Tape Echo, Echo, Flanger, Phaser, Filter, two type of Reverbs, and more, all sync to the beat or your tap input.
X9 has a D-Type digital, replaceable, assignable crossfader with reverse and continuous slope-controls, as well as mini-crossfader cueing, and balanced 1/4" outs for professional, reliable connection. X9 has everything you need, all you want, and then some.
- Three-channel digital, tabletop mixer
- 24-bit, no-noise, no-distortion digital mixing with Alesis technology
- Digital effects interface with 12 BEAT SYNC effects with wet/dry control
- Vocoder, Tape Echo, Echo, Flanger, Phaser, Filter, two type of Reverbs, and more
- Inputs: three phono/line switchable (RCA), two line (RCA), two mic (1/4")
- Outputs: Balanced (1/4", Master (RCA), Booth (RCA), Record (RCA), Headphone (1/4" stereo)
- D-Type digital crossfader with reverse and continuously adjustable slope control
- Microphone channel with gain, EQ, on/off switch, and aux input
- Three-band rotary, to-inifity EQs, and gain on each channel
- Dual three-band Kill switches
- Mini-crossfader cueing
