Memory
| Memory bandwidth (max) |
29 GB/s |
| Discrete graphics adapter memory |
1 GB |
| Graphics adapter memory type |
GDDR3 |
| Memory bus |
128 bit |
Performance
| DirectX version |
11.2 |
| OpenGL version |
4.5 |
| Shader model version |
5.0 |
| HDCP |
Y |
Ports & interfaces
| Interface type |
PCI Express x16 2.0 |
| DisplayPorts quantity |
1 |
| DVI-I ports quantity |
1 |
Processor
| Graphics processor family |
NVIDIA |
| Maximum analog resolution |
2560 x 1600 pixels |
| Maximum displays per videocard |
2 |
| Maximum digital resolution |
3840 x 2160 pixels |
| CUDA |
Y |
Design
| Form factor |
LP |
| Cooling type |
Active |
| Number of slots |
1 |
Additionally
| Dual-link DVI |
Y |
| Graphics controller |

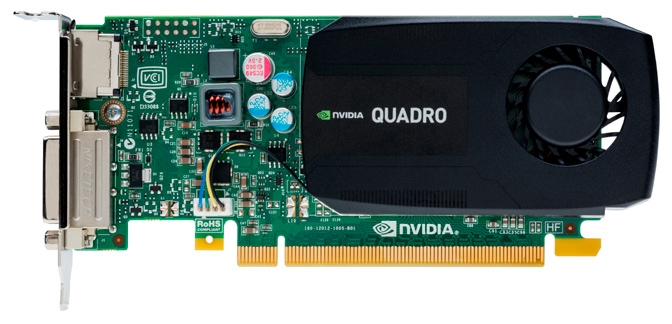

Quadro K420 |
1GB, GDDR3, PCI Express 2.0 x16, CUDA - 192, 29 GB/s, 128-bit
<b>Accelerate your creativity with NVIDIA® Quadro®—the world’s most powerful workstation graphics.</b>
The NVIDIA Quadro K420 delivers power-efficient 3D application performance and capability. 1 GB of DDR3 GPU memory with fast bandwidth enables you to create complex 3D models, and a flexible single-slot and low-profile form factor makes it compatible with even the most space and power-constrained chassis. Plus, an all-new display engine drives up to four displays with DisplayPort 1.2 support for ultra-high resolutions like 3840x2160 @ 60 Hz with 30-bit color.
Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists, giving you the peace of mind to focus on doing your best work. Whether you’re developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.
<b>FEATURES</b>
- DisplayPort 1.2 Connector
- DisplayPort with Audio
- DVI-I Dual-Link Connector
- VGA Support1
- NVIDIA nView Desktop
- Management Software
- Compatibility
- HDCP Support
- NVIDIA Mosaic
