Technical details
| Hose diameter |
6.35 mm |
| Seasonal efficiency rating (heating) (SCOP) |
4 |
| Seasonal efficiency rating (cooling) (SEER) |
6.1 |
| Heating capacity in watts (nominal) (Average heating season) |
2900 W |
| Dehumidifying capacity |
1 l/h |
| Refrigerating medium |
R410A |
| Hose length (max) |
25 m |
| Seasonal efficiency rating (heating) (SCOP) (Warmer heating season) |
4.9 |
| Cooling capacity in watts (nominal) |
2600 W |
| Cooling capacity in watts (max) |
3200 W |
| Heating capacity in watts (min) |
800 W |
| Heating capacity in watts (max) |
3400 W |
| Refrigerating medium weight |
800 g |
| Ionizer |
N |
| Indication light |
Y |
| Multi split |
Y |
| Display type |
LED |
| Timer |
Y |
| Type |
Split system air conditioner |
| Timer duration (maximum) |
24 h |
| Built-in display |
Y |
| Inverter technology |
Y |
| Autofan |
Y |
| Cooling capacity in watts (min) |
1000 W |
Power
| Annual energy consumption (cooling) |
149 kWh |
| Design load (cooling) |
2.6 kW |
| Design load (heating) (Warmer heating season) |
2.8 kW |
| Design load (heating) (Average heating season) |
2.4 kW |
| Energy efficiency class (heating) (Warmer heating season) |
A++ |
| Annual energy consumption (heating) (Average heating season) |
840 kWh |
| Annual energy consumption (heating) (Warmer heating season) |
800 kWh |
| Energy efficiency class (cooling) |
A++ |
| Energy efficiency class (heating) (Average heating season) |
A+ |
| Power consumption (cooling) (min) |
100 W |
| Power consumption (cooling) (max) |
1200 W |
| Power consumption (heating) (max) |
1200 W |
| Power consumption (heating) (min) |
100 W |
Indoor unit
| Indoor unit depth |
188 mm |
| Indoor unit height |
250 mm |
| Indoor unit width |
715 mm |
| Noise level (indoor unit) |
52 dB |
| Indoor unit weight |
6300 g |
| Indoor unit International Protection (IP) code |
IPX0 |
| Cooling airflow (indoor unit) |
320 m³/h |
| Heating airflow (indoor unit) |
320 m³/h |
| Indoor unit type |
Wall-mountable |
| Indoor units quantity |
1 |
Outdoor unit
| Outdoor unit width |
770 mm |
| Outdoor unit depth |
300 mm |
| Outdoor unit height |
555 mm |
| Outdoor unit weight |
25200 g |
| Heating airflow (outdoor unit) |
1800 m³/h |
| Cooling airflow (outdoor unit) |
1800 m³/h |
| Outdoor unit International Protection (IP) code |
IP24 |
| Outdoor units quantity |
1 |
| Noise level (outdoor unit) |
58 dB |
Packaging content
| Handheld remote control |
Y |
Additionally
| Cooling energy efficiency |
3.02 |
| Remote controlled |
Y |
| Heating energy efficiency |
3.26 |

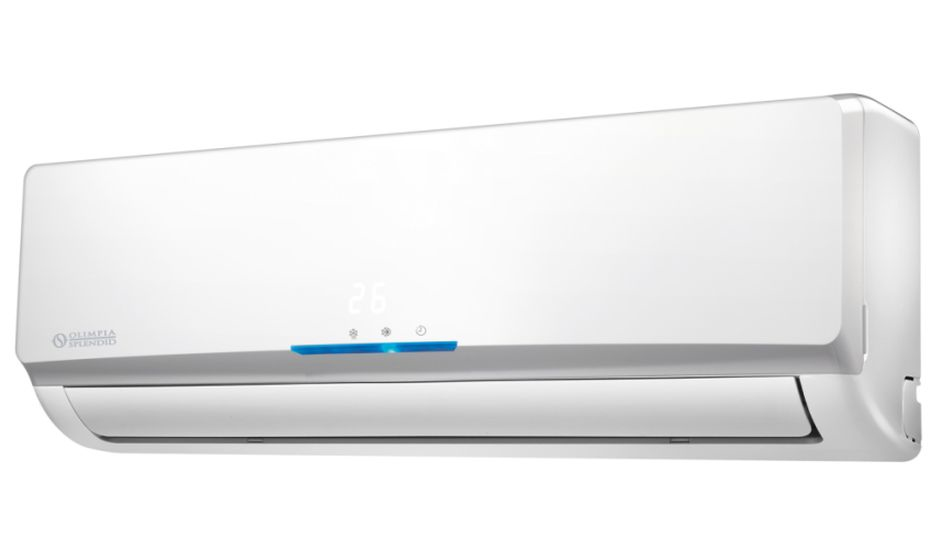

High Efficiency Monosplit, A++/A+, 2.6/2.9kW, Inverter, 52/58dB(A), R410A, IPX0, IP24, White
Nexya S3 inverter
NEXYA is the series designed for the air conditioning of large environments. Inverter motors and batteries with high thermal exchange are designed to maximize efficiency, but ensuring power and speed-up load. The indoor unit contains a tangential fan with high efficiency that ensures great air flow and minimizes fuel consumption. AUTO function lead to the a minimum consumption depending on environment thermal load. TURBO function ensures immediate cooling.
