Ergonomics
| Swivel angle range |
-16.5 - 16.5 ° |
| Adjustable |
Y |
| Tilt angle |
-16.5 - 16.5 ° |
| Adjustable arm |
Y |
| Telescopic |
Y |
Mounting
| Maximum weight capacity |
18.1 kg |
Projector mount

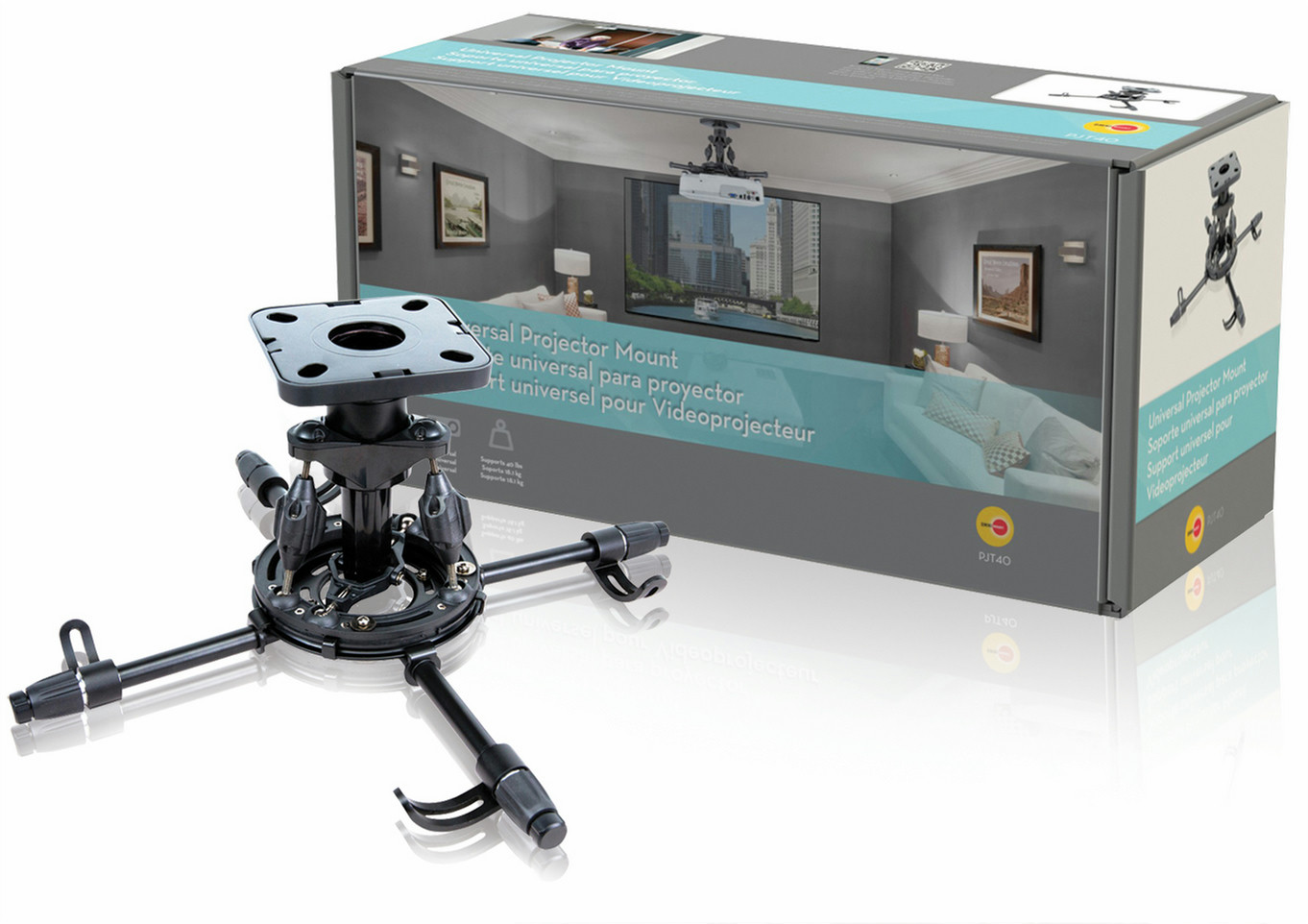

The OmniMount PJT40 is a universal projector mount with a high-tech look and fast installation. The PJT40 features a patent-pending MicroDial™ design that uses turnbuckles to make quick and accurate micro adjustments by hand— no tools required. The mount offers +/- 16.5 degrees of pitch and roll and 360 degrees of yaw. The patent-pending QuickLock™ feature on the projector mount’s legs makes aligning the mount to projector much easier, requiring no tools to lock the legs in the appropriate position. During the installation the dual-purpose feet can be positioned to account for uneven surfaces or extend the profile for wiring and circulation. Since security is an important factor whether installing in residential or commercial spaces, all exposed hardware on the PJT40 has a unique penta-shape for added security and theft-deterrence, plus the UL rating helps ensure safety. The PJT40 supports projectors up to 40 pounds and is sold as a complete out-of-box solution, including ceiling plate, 3” NPT, projector mount and all necessary hardware.
<b>Features</b>
Intuitive and tool-less design features make the PJT40 unique and make it a lot easier for an installer to mount and adjust the projector mount—especially when on a ladder. When making adjustments to align the projector image to the screen, the installer doesn’t need to worry about awkwardly handling or dropping small tools. Also, the PJT40 is sold as a complete solution, meaning everything the installer needs to complete the installation is right in the box: ceiling plate, pipe adapter, mount and hardware, resulting in a faster install and no extra trips to the hardware store.
<b>Integrator Benefit</b>
Integrators will appreciate the fast and intuitive installation of the PJT40. Since small tools can be awkward and easy to drop, the PJT40 has several tool-less features for a more installer-friendly product. The MicroDial™ design uses turnbuckles to control micro adjustments of the projector position, so pitch and roll can be quickly and accurately adjusted +/- 16.5 degrees by hand. QuickLock™ allows the installer to slide and lock the mount’s feet into the correct position without tools. The complete package ensures that installers have all necessary parts and hardware to complete the installation— no extra trips to the hardware store.
<b>Promotional Description</b>
OmniMount’s PJT40 projector mount with tool-less MicroDial™ and QuickLock™ technology speeds up projector installations. The mount offers +/-16.5 degrees of pitch and roll (controlled by hand) and supports up to 40 pounds. A complete out-of-box solution, the PJT40 comes with a ceiling plate, 3” NPT and all necessary hardware.
