Power
| Input voltage |
230 V |
| Input frequency |
50 - 60 Hz |
Security
| Outdoor range |
300m |
| Operating frequency |
868.3 MHz |
| Sensor type |
Passive infrared (PIR) sensor |
| Type |
Wireless |
Technical details
| Light sensitivity |
1000 lx |
RATIO-radio bus system Motion Detector, 868.3MHz, Interior 30 to 100m, exterior up to 300m, 10... 1000 lux

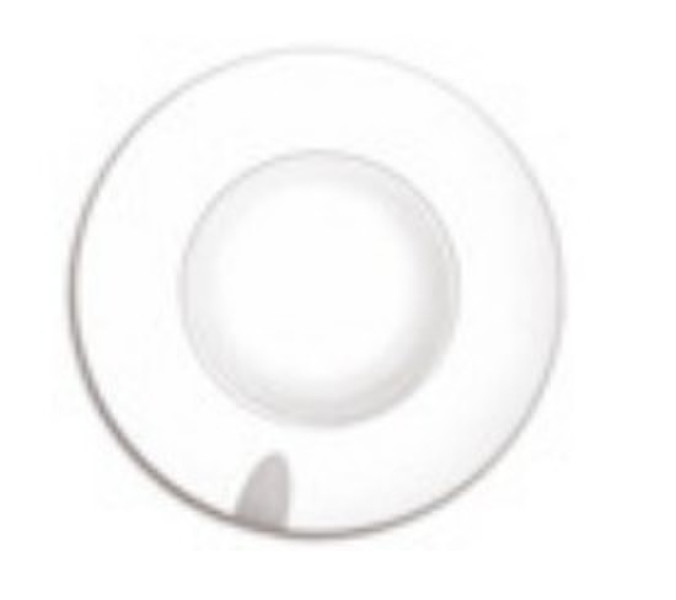

The Ratio-motion detector AP230/01 is a radio motion detector which sends, depending on light and movement,a radio telegram to radio actuators and receivers/gateways to switch on/off the light e.g.
The Ratio-motion detector is suitable to ceiling suspension and has to be provided by supply voltage.
