Operational conditions
| Operating altitude |
-100 - 4000 m |
Power
| Number of power supply units |
1 |
1-Module, 120VAC, 60Hz, 1.0A, 8.3W, Tabletop PS, US Power Cord, 1.5 lbs
<b>Features:</b>
- 1-Module Power Chassis with external AC adapter power supply or direct DC power
- DC input supports 20 to 60VDC via three pin terminal connector
- Houses all single-slot models of hot-swappable iConverter media converter and switch modules
- NEBS Level 3 Compliant
- Optional wide temperature range of -40 to +60º C
- Management is available with the installation of an iConverter NID plug-in module with integrated management
- Models 8241-X and 8243-X support Dying Gasp (Power Loss Trap) through a management module
- Wall-mount or table-top options
- DIN-rail mounting option available
- Lifetime Warranty and free 24/7 Technical Support

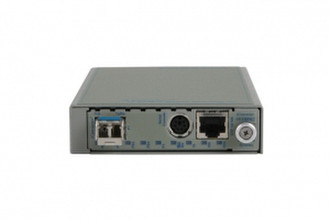

The compact 1-Module iConverter Power Chassis supports a single iConverter module and is powered by an external AC power adapter or external DC power source (20 to 60VDC). The 1-Module Power Chassis is designed for network edge, Customer Premises or Central Office deployments where low profile, low cost and flexible upgrades are important.
Any iConverter single-slot module can be installed in the 1-Module Power Chassis and function as a standalone unit. The unit can be rack, wall, or DIN-rail mounted with optional mounting kits.
The chassis supports managed edge demarcation applications when an iConverter Network Interface Device (NID) plug-in module with integrated management (such as the 10/100M2 shown in the photos above) is installed in the chassis. Models with “Dying Gasp” support allow NIDs to send a power failure alarm in the event of power loss.
