Other features
| Fiber type |
DF |
| Interface |
T1/E1 |
Performance
| Tx power (min) |
-15 dBmW |
| Link budget |
16 dB |
| Rx power (min) |
-31 dBmW |
| Rx power (max) |
-8 dBmW |
| Fiber mode structure |
Single-mode |
| Maximum transfer distance |
30000 m |
| Tx power (max) |
-8 dBmW |
| Wavelength |
1310 nm |
Power
| Input frequency |
50/60 Hz |
| Input voltage |
100-240 V |
| Input current |
0.5 A |
Networking
| Converter input interface |
100Base-TX |
| Converter output interface |
100Base-FX |
Operational conditions
| Operating altitude |
-100 - 4000 m |
Additionally
| Transfer rate (Mbps) |
100 Mbit/s |
| Wireless technologies |
Wired |
Unmanaged, 4xT1/E1, 10/100TX / 100FX, DF, SM, SC, 30 km, 1310 nm, 16 dBm, 100 - 240VDC
Features:
- Multiplexes four independent T1 or E1 channels from copper links into one fiber link
- Supports optional multiplexed 10/100 copper Ethernet port with T1/E1 circuits
- Small Form Pluggable (SFP) transceivers or fixed-fiber connectors
- Supports multimode, single-mode dual fiber, single-mode single-fiber, in standard and CWDM wavelengths
- Locally configurable via DIP-switches
- Configurable alarm relay contacts for audio/visual fault notification
- Supports local and remote fiber and copper loop-back modes
- Commercial (0 to 50º C) and wide (-40 to 60º C) operating temperature ranges
- Lifetime Warranty and free 24/7 Technical Support

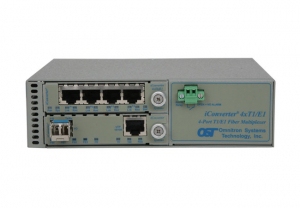

The iConverter 4xT1/E1 MUX multiplexs up to four T1/E1s and an optional 10/100 Ethernet onto a fiber optic transport link. The unmanaged T1/E1 Multiplexer provides an easy to use and cost effective multi-service solution.
The iConverter 4xT1/E1 MUXes operate in a back-to-back configuration, with one multiplexer at each end of the fiber link. This easy-to-use and cost-effective MUX transports services from legacy TDM equipment across long distances that exceed the reach or capacity of copper. This includes applications such as T1/E1 extension, mobile backhaul and building-to-building PBX connectivity, making it ideal for Enterprise, Telecom and Utility industries.
The 4xT1/E1 MUX supports fixed-fiber and Small Form Pluggable (SFP) transceivers, enabling easy adaptability to different fiber types, distances and wavelengths. The 4xT1/E1 MUX supports multimode, single-mode, single-mode single-fiber, in standard and CWDM wavelengths.
The 4xT1/E1 MUX supports standard T1, E1 and Primary Rate Interface (PRI), voice or data. The MUX also supports AMI, B8ZS and HDB3 line codes. DIP-switches provide easy configuration of the T1/E1 line codes and line build-out.
The copper interfaces feature four RJ-48 connectors for balanced T1/E1 applications. An optional adapter cable is available to convert each RJ-48 interface to a BNC interface for unbalanced E1 transport applications.
The 4xT1/E1 MUX features user-selectable local loop-back on both the copper and fiber ports, remote fiber loop-back and circuit test modes. This functionality facilitates diagnosis of the remote unit, and minimizes the need for test equipment and support personnel at each end of a link. Alarm relay and LEDs provide fault notification for loss of power, LOS and AIS.
The 4xT1/E1 MUX is a compact, unmanaged standalone unit available in both AC and DC models. The AC model accepts AC power input ranging from 100VAC to 240VAC, 50/60Hz, while the DC model accepts 18VDC to 60VDC.
