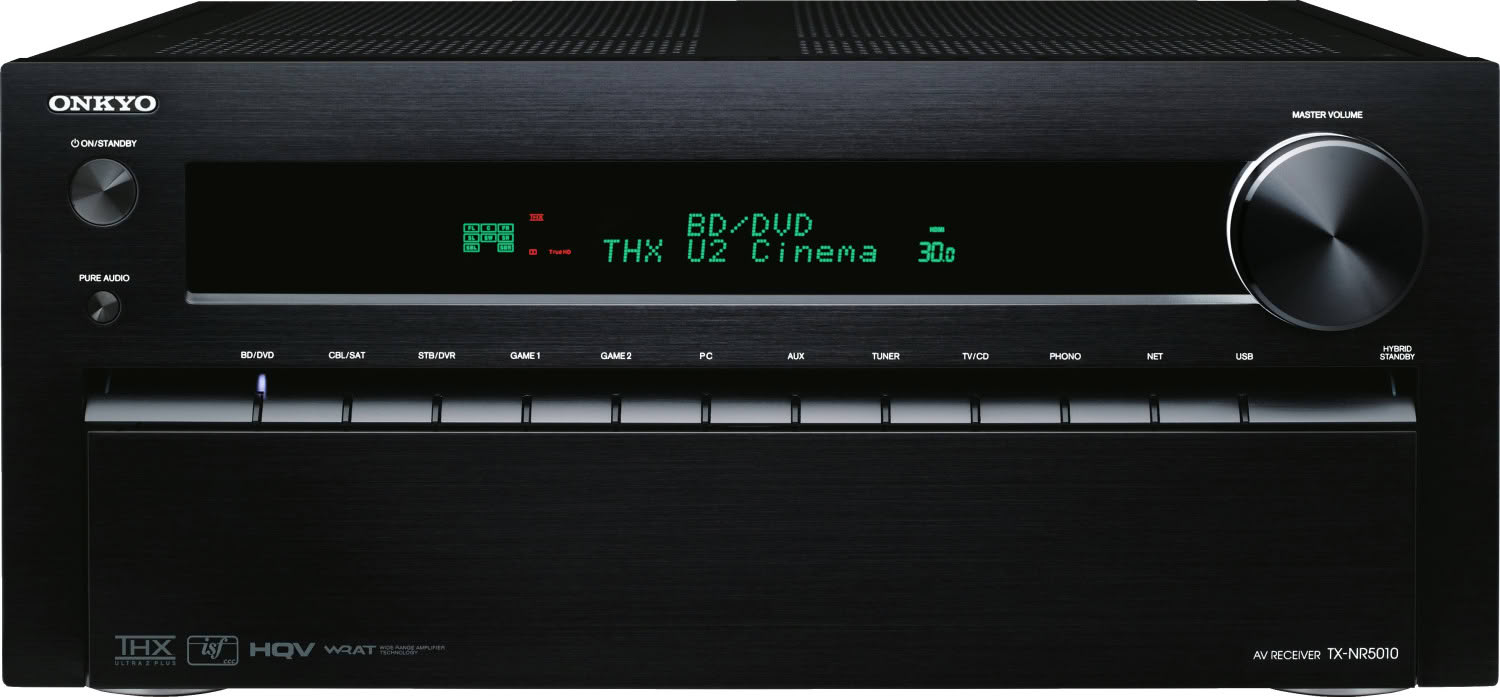

Product types: Network receiver, AV receiver
Series: Onkyo TX-NR
Speaker configuration: A/B speaker terminals
Power per channel: 220 Watt
Technical specifications
Output power: 9 x 220 Watt
Output impedance: 6 Ohm
Speaker connections: Banana plugs suitable, screw terminals
Constructions: Discrete power amplifiers, 4Ω speaker support, 32-bit D/A converter, with remote control
HDMI function: HDMI-CEC
HDMI version: HDMI 1.4a
Playback formats: MP3, AAC, ALAC, FLAC, WMA Lossless
Connections
analog audio inputs: 7x LINE Inputs (RCA, Stereo), 1x MM Phono Input (RCA, Stereo)
analog audio output: 2x LINE Out (Cinch/RCA, Stereo)
digital audio inputs: 3x S/PDIF IN (TOS-Link optical), 3x S/PDIF IN (Cinch/RCA coaxial)
HDMI ports: 2x HDMI-Out, 8x HDMI-In
Video connections: VGA input, 1x Component OUT, 4x Composite IN, 2x Composite OUT, 2x Component IN
Preamp outputs: 11.4 Surround (Cinch/RCA)
Front Connections: HDMI Input, Composite Video Input, Headphone Output, iPod USB Connection, 1x Measurement Microphone (Setup Mic), S/PDIF IN (TOS-Link, Optical), LINE In (Cinch/RCA, Stereo)
Data connections: Network connection, USB
Connections for control signals: RS-232, 1x Remote OUT, 2x 12V Trigger OUT, 1x Remote IN
gold-plated connections: yes
Audio
Audio functions: Audyssey Dynamic Volume, Audyssey Dynamic EQ, Audyssey DSX, LipSync, Jitter Reduction
Dolby formats: Dolby TrueHD, Dolby ProLogic IIz
DTS Formats: DTS Neo:X, DTS HD Master Audio
THX Formats: THX Ultra 2 Plus
Number of listening zones: 3
Video
Supported Resolutions: UHD
Video functions: 4K Pass-Through, ISF Image Calibration
3D-Ready: yes
Connectivity
Network functions: DLNA, Control via app, MHL interface
Wireless transmission: Bluetooth
Streaming services: last.fm, vTuner, Aupeo, Simfy, Spotify, Internet radio
Universal Plug and Play (UPnP): yes
Functions
Comfort features: On-Screen Display (OSD), pre-programmed remote control
automatic measurement: yes
Calibration system: Audyssey MultEQ XT32
Reception areas: FM (VHF), AM (MW)
RDS: yes
Number of station presets: 40
Power supply
Power consumption in operation: 1.060 Watt
Power consumption standby: 0,15 Watt
additional features
Dimensions: 435 x 198.5 x 463.5 mm
Weight: 29 kg
Housing property: Aluminum
Color: black
