Technical details
| AirPlay |
Y |
| Damping factor |
54 |
| Digital Signal Processing (DSP) |
Y |
| Handheld remote control |
Y |
| Equalizer |
Y |
| Deep colour support |
Y |
| x.v.Color support |
Y |
| On Screen Display (OSD) |
Y |
| Satellite speaker impedance |
16 Ω |
Audio
| Power output per channel (20-20KHz@8 Ohm) |
100 W |
| Power output per channel (1KHz@6 Ohm) |
210 W |
| Dynamic power per channel (8 Ohm) |
120 W |
| Dynamic power per channel (4 Ohm) |
210 W |
| Dynamic power per channel (3 Ohm) |
240 W |
| Input sensitivity |
200 mV |
| Total Harmonic Distortion (THD) |
0.08% |
| Frequency range |
10 - 100000 Hz |
| Output level |
200 mV |
| Output impedance |
470 Ω |
| Signal-to-Noise Ratio (SNR) |
106 dB |
| Input impedance |
47000 Ω |
| Pre-out connectivity |
Y |
| Audio D/A Converter (DAC) |
32-bit/384kHz |
Ports & interfaces
| AM antenna ports quantity |
1 |
| FM antenna ports quantity |
1 |
Inputs
| Digital audio coaxial in |
1 |
| Component video (YPbPr/YCbCr) in |
2 |
| HDMI in |
7 |
| USB ports quantity |
1 |
| PC Audio in |
Y |
| Digital audio optical in |
2 |
| Composite video in |
2 |
Outputs
| Headphone outputs |
1 |
| Headphone connectivity |
6.3 mm |
Radio
| Preset stations quantity |
40 |
| FM band range |
87.5 - 107.9 MHz |
| Supported radio bands |
AM, FM |
| Internet radio |
Y |
| AM band range |
530 - 1710 kHz |
Additionally
| Ethernet LAN connection |
Y |

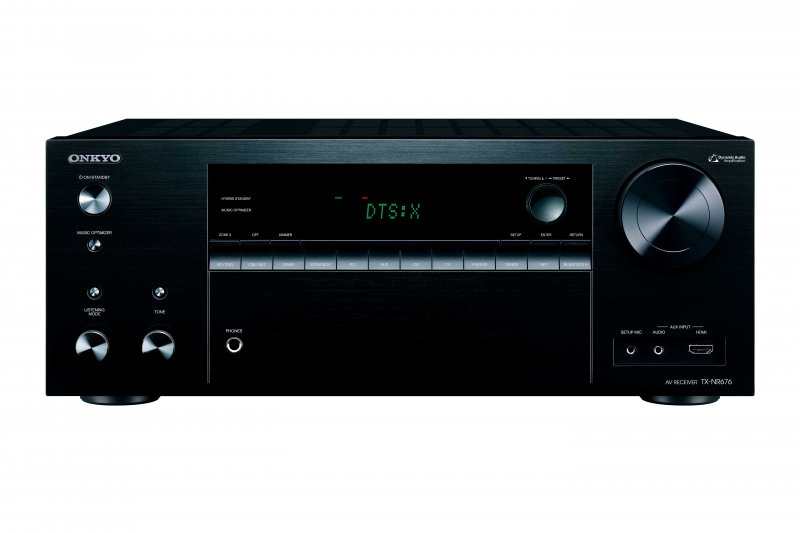

7.2 channel, 210 W, Dolby Atmos, DTS:X, FM/AM, 9x HDMI, USB, 2x Composite in, 2x Component in, 3x Digital out, 6x Analog in, 6.35mm, 3.5mm, Wi-Fi, Bluetooth, LAN, 435 x 173.5 x 378 mm, black
Dynamic Audio Amplification
Backed by 70 years of experience building high-grade audio components, the TX-NR676 amplifies accurate, noise-free signal processing with high-current power for dynamic speaker control. The result is pure, rich and authentic sound.
Onkyo's dynamic audio amplification delivers massive power at 210 W/Ch (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven)/ 100 W/Ch (8 Ohms, 20 Hz–20 kHz, 0.08% THD, 2 Channels Driven).
Smooth Analog Signal
Onkyo developed Vector Linear Shaping Circuitry (VLSC) to reassemble the audio signal to its original form following processing. Unlike conventional filters, VLSC removes pulse noise generated in D/A conversion, allowing the sound wave to be reproduced with extremely high fidelity for a smooth analog signal.
Powered Zone 2 and Zone 2 Lineouts
Powered Zone 2 speaker outputs let you send amplified network, S/PDIF, or analog audio sourced to a pair of speakers in another room. Line outputs can connect your home theater sources to a separate hi-fi system. Manage playback using Onkyo Controller.
Unlock Dolby Atmos® and DTS:X™ Playback
Object-based soundtracks allow independently mixed sound to play through any speaker in your system. Effects move all around as they do in real life, so you experience 5.2.2-channel Dolby Atmos or DTS:X formats as the director intended. DTS Neural:X™ identifies spatial effects in multichannel soundtracks and upmixes for 3D playback, while DTS:X offers independent dialog volume control for movies. Dolby Surround is also included to upmix legacy multichannel formats for playback in a Dolby Atmos enabled environment.
Music Made Easy with Chromecast built-in
Stream any music from your smartphone, laptop, or PC to the TX-NR676 with ease. Control playback with Chromecast enabled apps you know and love from your iPhone, iPad, Android™ phone or tablet, Mac® or Windows® laptop, or Chromebook™.
Stream Anything with DTS Play-Fi®
DTS Play-Fi is a wireless protocol that works with any audio app on mobiles and PC. Flick whatever’s playing to the receiver, even different sources to different components at the same time.
4K HDR, BT.2020, 4K/60 Hz, and HDCP 2.2 Support
Six rear HDMI® inputs support pass-through of 4K HDR in both HDR10 and Dolby Vision™ formats; the BT.2020 4K Video Standard, 4K/60 Hz video playback; and HDCP 2.2 for premium content. Further, front HDMI is available for easy connection of a video camera or game console, while a rear Sub Output is ideal for connecting a projector.
Wi-Fi®, AirPlay, Spotify®, Bluetooth®
Selectable 5 GHz/2.4 GHz Wi-Fi assures stable connectivity so you can enjoy smooth streaming over AirPlay, the Spotify app, and the local network. Bluetooth wireless technology also provides quick and simple wireless streaming from your choice of music application.
Internet Radio and Streaming Services
TIDAL, Deezer, Pandora®, and TuneIn are baked into the GUI, making it easy to select from a huge range of music and radio programs using Onkyo Controller.
384 kHz/32-bit Hi-Grade DAC
No matter what you're listening to, it will sound powerfully full, clean and clear. A premium-quality AK4458 digital-to-analog converter from Asahi Kasei implements unique low-distortion filtering technologies for clear sound, and unlocks the full potential of any audio format, including compressed, lossless, and hi-res audio.
AccuEQ & AccuReflex
AccuEQ conducts two measurements- one to set the level, distance and crossover for ALL speakers, including the subwoofer. Choose to include or bypass EQ measurement for front left and right speakers, and choose to automatically or manually set the EQ. Further, you can save your own manual EQ settings into three available presets.
AccuReflex technology aligns the phase of up-firing "height" speakers with the sound coming directly from your other speakers. Any delay is resolved so that everything arrives at your ears at the same time. The result is cohesive reproduction of object-based soundtracks.
FireConnect™ Wireless Multi-room Audio
FireConnect™ mirrors network audio and external analog sources connected to a master component—from streaming services to vinyl records—on FireConnect™-compatible speakers in other rooms. Music selection, speaker grouping, and playback management across the home are built into Onkyo Controller app for iOS and Android™.
