Ports & interfaces
| HDMI ports quantity |
3 |
| Digital audio optical out |
1 |
| Digital audio coaxial out |
1 |
| HDMI |
Y |
Storage
| Card reader integrated |
N |
| Internal memory |
1024 MB |
Performance
| Progressive scan |
Y |
| BD-Live |
Y |
Packaging content
| Handheld remote control |
Y |
| Warranty card |
Y |
Video
| Video upscaling |
Y |
| Network streaming |
Y |
| 2D-3D converter |
Y |
| 24p support |
Y |
| Full HD |
Y |
Media types
| Disc types supported |
CD-RW, DVD-R DL, BD-R, DVD-RW, DVD+RW, DVD+RW DL, DVD+R, DVD+R DL, DVD-RW DL, BD-RE, DVD-R, CD-R |
Additionally
| Ethernet LAN connection |
Y |
| RS-232 port |
1 |
| Ethernet LAN (RJ-45) ports quantity |
1 |

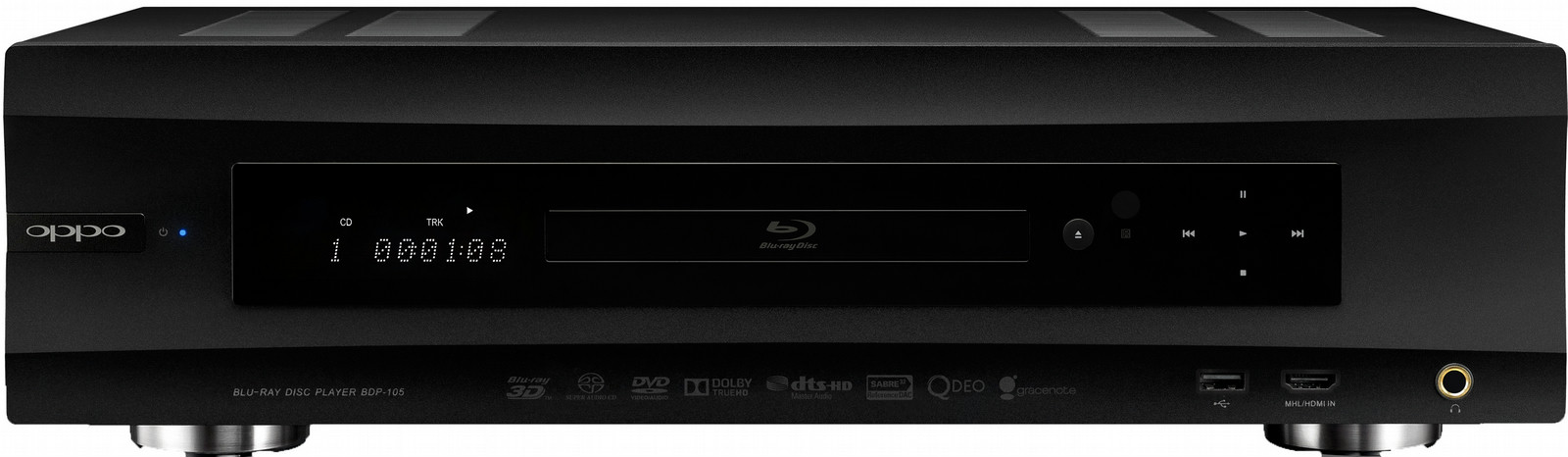

BDP-105, Universal 3D Blu-ray Disc Player
- Universal Audiophile 3D Blu-ray Disc Player
- ESS SABRE32 Reference Audiophile DAC
- Headphone Amp & Asynchronous USB DAC
- Stereo & Multichannel Analog Outs
- 4k Up-Scaling, 3D Playback, 2D to 3D Conversion
<b>Audiophile-Grade Fidelity for the Discerning Enthusiast</b>
The OPPO BDP-105 is designed from the ground up with components optimized for enhanced analog audio performance. High-grade components are housed in a rigidly constructed, passively cooled metal chassis and work together to deliver exceptionally detailed and accurate sound quality.
<b>High Fidelity Audio Performance</b>
The DAC is one of the most important components for digital audio playback. The SABRE32 Reference ES9018 from ESS Technology is the world’s best performing 32-bit audio DAC solution targeted for high-end consumer applications and professional studio equipment. With the ESS patented 32-bit Hyperstream™ DAC architecture and Time Domain Jitter Eliminator, the SABRE32 Reference DAC delivers an unprecedented DNR (Dynamic Range) of up to 135dB and THD+N (Total Harmonic Distortion plus Noise) of -120dB, the industry’s highest performance level that will satisfy even the most demanding audio enthusiast. The BDP-105 uses two ES9018 DAC chips - one for the 7.1-channel output, and another for the dedicated stereo output.
The BDP-105 features a dedicated 2-channel analog output with specially optimized ES9018 DAC and output driving stages. The stereo output offers both XLR balanced and RCA single-ended connectors. The balanced output features a true differential signal path all the way from the DAC to the 3-pin XLR connector. By transmitting a pair of differential signals, the balanced output provides better common-mode noise rejection and improves signal quality.
By bypassing the low fidelity, poor quality DAC of traditional computer soundcards, the BDP-105 turns any computer into a high performing multi-media source by converting digital audio to analog through the ESS Sabre32 Reference DAC. If your computer can play it, the BDP-105 can convert it to analog.
A toroidal power transformer offers superior power efficiency and much lower exterior magnetic fields over traditional laminated steel core transformers. The BDP-105's toroidal linear power supply provides a very clean and robust power source to the critical audio components.
For a more intimate listening experience, a pair of headphones can be connected directly to the BDP-105’s built-in headphone amplifiers. The headphone amplifier is connected directly to the ESS Sabre32 Reference DAC and offers a unique performance advantage over standalone headphone amplifiers.
