Scanning
| Tilt angle |
0 - 20 ° |
| Pitch reading angle |
0 - 35 ° |
| Decoding standards |
JAN/UPC/EAN, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey |
| Wavelength |
650 nm |
| Tilt reading angle |
0 - 20 ° |
| Scan speed |
100 sec/page |
Power
| Input voltage |
6.5 V |
| Power consumption |
130 mA |

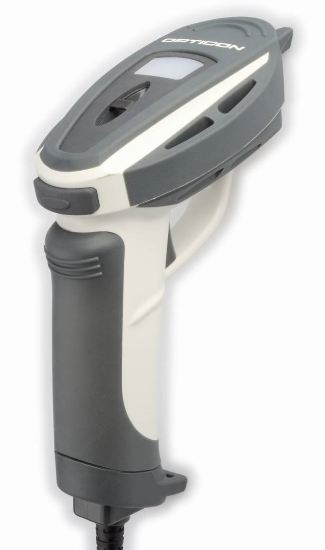

OPR-3001 - 1 scan key, 650 nm, 100 scans/sec, R>15 (EAN8), R>20 (EAN13)
This high-performance scanning device features a rubberized pistol grip and trigger guard, sealed up to IP 54 standards for operation in dirty and harsh conditions. The OPR3001, withstanding multiple drops up to 2 meters onto concrete, has been awarded with the Good Design Award. This is Japan's most prestigious industrial design award, from the Japan Industrial Design Promotion Organization.
Flexible
The OPR3001 is designed for aggressive reading of poorly printed and slightly damaged barcodes. A large and bright LED along with an adjustable tone provides a clear indication, especially suitable for operation in low-light and noisy environments. The OPR3001 is available with USB (HID), RS232 and Keyboard Wedge interface options, for easy implementation.
