Other features
| Link/Act LED |
Y |
| Non-operating relative humidity (non-condensing) |
0 - 80% |
| Networking features |
Gigabit Ethernet |
| Supported protocols |
SMB/CIFS, HTTP/HTTPS, FTP, NFS v3, AFP |
Processor
| Number of processors installed |
1 |
| Processor cache |
1 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
13 W |
| Physical Address Extension (PAE) |
32 bit |
| Processor package size |
22 mm |
| Processor ARK ID |
43098 |
| Processor code |
SLBLA |
| Processor cache type |
L2 |
| Memory bandwidth supported by processor (max) |
6.4 GB/s |
| Conflict Free processor |
N |
| Tjunction |
100 °C |
| Processor operating modes |
64-bit |
| L2 cache |
1 MB |
| Stepping |
B0 |
| Processor cores |
2 |
| Processor frequency |
1.66 GHz |
| Maximum internal memory supported by processor |
4 GB |
| ECC supported by processor |
N |
| Bus type |
DMI |
Processor special features
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Intel 64 |
Y |
| Number of Processing Die Transistors |
176 M |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
| Enhanced Intel SpeedStep Technology |
N |
| Intel Demand Based Switching |
N |
Networking
| iSCSI support |
Y |
| Wi-Fi |
Y |
| Supported network protocols |
TCP/IP/Appletalk |
| Compliance industry standards |
IEEE 802.11b,IEEE 802.11g |
Performance
| Multilingual support |
Y |
| Reset button |
Y |
| Web-based management |
Y |
Storage
| Number of storage drives supported |
4 |
| Number of storage drives installed |
4 |
| Total installed storage capacity |
4000 GB |
| Storage drive capacity |
1000 GB |
Additionally
| Processing die size |
87 mm² |
| Internal RAM |
1 GB |
| On/Off switch |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Transfer rate (Mbps) |
100 Mbit/s |

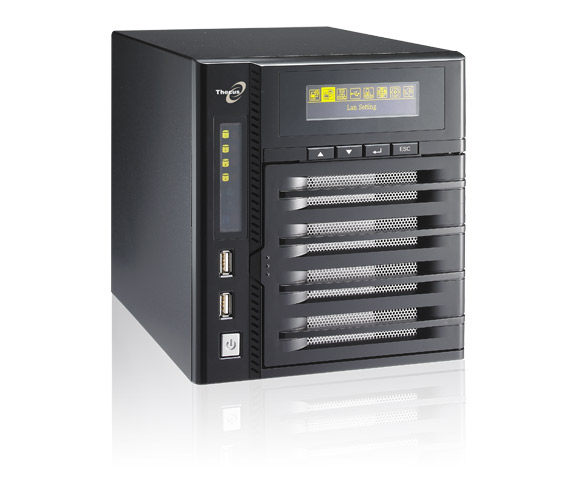

Thecus N4200 4BAY NAS 4TB (4x1000GB)
Dual Core CPU for Snappy System Performance.
Two heads are better than one, which is why the N4200's dual core Intel® CPU can deliver increased system response and handle multiple clients quickly and efficiently. Enjoy the performance and power of the N4200 with Intel Inside.
Unmatched Reliability with Dual DOM Design.
A Disk On Module (DOM) contains all of the system's critical software. If it stops working for any reason, your system firmware could be inaccessible - or worse. With the N4200's Dual DOM Design, a secondary DOM automatically reprograms the primary DOM if it fails, meaning your data is always safe and accessible.
Easy Administration with Dual Displays.
Featuring two separate displays, the N4200 is incredibly friendly to use. The LCD displays critical system information, including hard disk and network status, while the OLED allows you to change a number of different system settings, such as WAN, LAN, Link Aggregation, languages and more.
Dual Power for Untouchable Data Integrity.
Sudden power failures can spell trouble for your data. If the power goes out during a firmware upgrade, your entire system could be at risk. Enter the N4200's Battery Backup Module (BBM). With the equipped lithium-ion BBM, all unwritten data is automatically saved into hard disks, ensuring both data and system integrity at all times.
Increased Flexibility with Dual HDD Profile Support.
The N4200 features Thecus' unique combo SATA hard disk bays, which can accommodate both 2.5" and 3.5" SATA hard disks! Choose 2.5" drives for lower power consumption and quieter operation, or 3.5" drives for extra capacity and performance. With the N4200, the choice is yours.
Thecus N4200 Dual DOM with Dual Protection NAS server.
The N4200 was designed to enable users to access their data both quickly and easily. It begins with the new Intel® Atom™ dual-core processor D510, which runs at 1.66GHz and, in combination with 1GB of DDR2 memory, delivers both blistering data transfer speeds and increased system response. Users can easy manage their unit with the N4200’s dual displays. The LCD offers a wealth of system information, including hard disk and network status, while the big and bright 2.8” OLED display allows users to modify a number of settings directly on the device including WAN, LAN, Link Aggregation, languages and more, making the N4200 the friendliest Thecus® NAS ever.
Of course, the N4200 is incredibly adept at both storing and securing data. Four SATA II hard disk bays offer up to 8TB of storage capacity, which is plenty of space for all sorts of digital photos, movies, and music. To keep data safe, the N4200 comes with multiple RAID modes, including RAID 0, 1, 5, 6, 10 and JBOD. The N4200 is equipped with Dual DOM technology, which uses a secondary DOM to reprogram the primary DOM in the event of a failure, and ensures maximum uptime and data availability. The N4200 can even handle itself during a power outage, thanks to the built-in battery backup module (BBM). Should the power go out for any reason, the N4200 automatically retains unwritten data in hard drives to maintain data integrity.
