Processor
| Number of processors installed |
1 |
| Bus type |
QPI |
| Processor cache |
4 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
80 W |
| Physical Address Extension (PAE) |
40 bit |
| Processor package size |
42.5 mm |
| Processor ARK ID |
40711 |
| Processor code |
SLBF9 |
| Processor cache type |
Smart Cache |
| Memory bandwidth supported by processor (max) |
19.2 GB/s |
| CPU configuration (max) |
2 |
| CPU multiplier (bus/core ratio) |
15 |
| Processor operating modes |
64-bit |
| Stepping |
D0 |
| Processor cores |
4 |
| Processor frequency |
2 GHz |
| Maximum internal memory supported by processor |
144 GB |
| Tcase |
76 °C |
| ECC supported by processor |
Y |
Ports & interfaces
| FireWire 400 |
N |
| FireWire 800 |
N |
| VGA (D-Sub) ports quantity |
1 |
Storage
| Hot-swap drive bays |
Y |
| Hard drive speed |
7200 RPM |
| Total installed storage capacity |
24000 GB |
| Storage drive capacity |
2000 GB |
| Number of storage drives supported |
12 |
Processor special features
| Memory types supported by processor |
DDR3-SDRAM |
| Number of QPI links |
2 |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Virtualization Technology (VT-x) |
Y |
| Memory channels supported by processor |
Triple |
| Physical Address Extension (PAE) |
Y |
| Intel 64 |
Y |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Smart Cache |
Y |
| Intel Hyper-Threading Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
Y |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
Y |
Other features
| Networking features |
Gigabit Ethernet |
Power
| Power supply unit (PSU) capacity |
800 W |
Operational conditions
| Operating altitude |
0 - 3048 m |
Additionally
| Fibre Channel |
Y |
| RS-232 port |
1 |
| System bus data transfer rate |
4.8 GT/s |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Internal RAM |
2 GB |

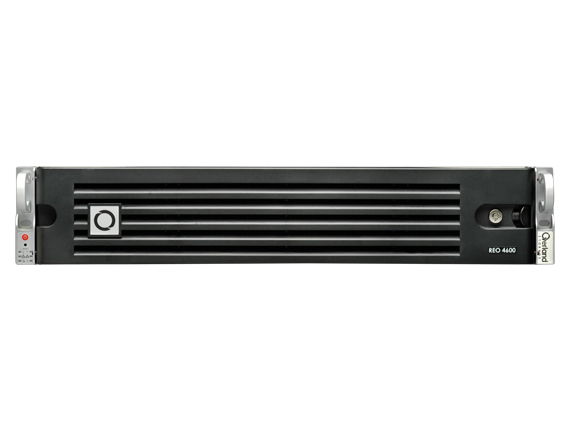

24.0TB (12 x 2TB), 7200rpm, RAID 5/6, Intel Xeon e5504 quad-core Nehalem CPU, 2GB DDR3 1333MHz Registered DIMMs, iSCSI/FC, 2 x 1GbE, 2U
Affordable, scalable, flexible. When you need disk-based backup and recovery that provides uncompromising support for growth, can be deployed as VTL or disk volumes, and doesn’t break your IT budget, the REO 4600 is your choice. With the ability to scale from 12TB to 240TB, the REO 4600 is ideal for businesses of any size.
Configurations begin with a 12-drive appliance module. Expansion is facilitated by adding up to four E2000 SAS-connected expansion arrays. Each E2000 delivers 6, 12 or 24TB, depending upon the drive size you choose. Hardware compression effectively gives the REO 4600 a total of 240TB compressed capacity without affecting performance or useable virtual tape capacity.
It's easy to configure the REO 4600 as a virtual tape library and/or any mix of standalone virtual tape drives or disk volumes (LUNs) for maximum flexibility. Patent-pending Dynamic Virtual Tape (DVT) ensures that no storage capacity is wasted while eliminating the manual effort and guesswork of sizing, configuring, provisioning, and deleting virtual tape cartridges. With DVT, users can create virtual tape cartridges that automatically expand or shrink as needed to match the exact capacity requirements of the backup operation.
The REO 4600 is compatible with all popular open systems or Windows-based backup software, physical tape drives, and libraries. It connects easily to Ethernet (iSCSI) or Fibre Channel (FC) networks and a simple browser-based interface, proactive monitoring, and remote management capabilities combine to make the 4600 simple and cost effective to manage.
