Processor
| Number of processors installed |
1 |
| L2 cache |
1 MB |
| Processor frequency |
1 GHz |
Other features
| Remote management software |
SnapServer Manager |
| Networking features |
Gigabit Ethernet |
Performance
| Pre-installed software |
GuardianOS |
Storage
| Number of storage drives supported |
4 |
| Hard drive speed |
7200 RPM |
| Total installed storage capacity |
2000 GB |
| Hot-swap drive bays |
Y |
| Storage drive capacity |
500 GB |
| Number of storage drives installed |
4 |
Memory
| Maximum RAM supported |
4 GB |
Power
| Number of power supply units |
2 |
| Power supply unit (PSU) capacity |
400 W |
Networking
| Wi-Fi |
N |
| Supported network protocols |
SMB (1.0) / CIFS (NTLM), CIFS Mac OS X, NFS v2/v3/v4 (UDP/TCP), Apple AFP, FTP/FTPS, HTTP/HTTPS (1.1) |
Operational conditions
| Operating altitude |
0 - 3048 m |
Additionally
| Fibre Channel |
N |
| Internal RAM |
2 GB |
| Ethernet LAN (RJ-45) ports quantity |
2 |
2TB (4 x 500GB),7200 RPM, Hot-Swap, SATA II, RAID 0/1/5/6/10, 1 x dual-core AMD Opteron, 1000MHz HyperTransport, 1MB L2 cache, 2GB DDR 400 ECC RAM, 4 DIMMs, 10/100/1000Base-T, 2 x RJ-45, USB 2.0

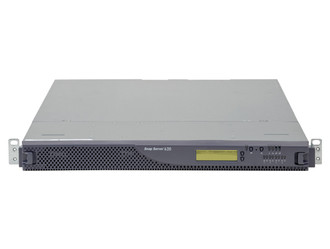

The SnapServer 620 is affordable storage platforms that provide balanced performance and flexible capacity scaling. Leveraging dual-core 64-bit processors and your choice of SAS or SATA hard drives, the 620 efficiently stores both file and block data over an Ethernet network — allowing you to consolidate your storage systems and management.
It is ideal for growing businesses with a wide variety of storage needs. Delivering balanced performance and ease of use in a 1U rack mount server, these systems are designed to fit a wide range of storage needs and budgets. They come configured with either 4 enterprise-class SATA II drives for an initial capacity of up to 8TB or for higher performance requirements, 4 enterprise class SAS drives for an initial capacity of 1.2TB. Capacity is expandable to an additional 25.2TB of SAS or 168TB of SATA storage. Choose from RAID levels of 0, 1, 5, 6, and 10 to optimize performance and keep your data safe.
Built on the award-winning GuardianOS platform, the 620 includes many of the capabilities found in more expensive systems such as snapshots, Microsoft Active Directory (AD) integration, and the ability to be remotely managed from a central console, along with other SnapServers, with SnapServer Manager. By leveraging Snap Enterprise Data Replicator (Snap EDR) software, data can be continuously, securely, and efficiently replicated between sites over a Wide Area Network (WAN).
With the ability to scale from 1.2TB to 176TB of storage capacity, you can right-size your storage environment by purchasing only what you need today, and then expand your system as your storage needs grow. And by allowing you to mix SAS and SATA drives, the SnapServer 620 enables you to build a truly customized solution that fits your specific needs.
