Security
| Firewall security |
NAT |
| MAC address filtering |
Y |
Other features
| Supported data transfer rates |
10/100 Mbit/s |
| Ports quantity |
4 |
| Maximum data transfer rate |
0.1 Gbit/s |
| Interface |
RJ-45 |
| Bandwidth |
2.4835 GHz |
| Networking features |
Fast Ethernet |
| Input voltage |
5 V |
| Data transfer rate |
100 Mbit/s |
| Input current |
1 A |
| Operating temperature (T-T) |
32 - 104 °F |
| Power supply type |
DC |
| Frequency range |
2.4 - 2.4835 GHz |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Networking
| Receiver sensitivity |
130M: -65dBm@10% PER;\n108M: -68dBm@10% PER;\n54M: -68dBm@10% PER;\n11M: -85dBm@8% PER;\n6M: -88dBm@10% PER;\n1M: -90dBm@8% PER. |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Protocols
| DMZ support |
Y |
| DHCP server |
Y |
| Supported network protocols |
TCP/IP, DHCP, ICMP, NAT, PPPoE, Stat IP, Dyn IP |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
150 Mbit/s |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Modulation |
16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK |
Antenna
| Antenna gain level (max) |
4 dBi |
Power
| Power over Ethernet (PoE) |
Y |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

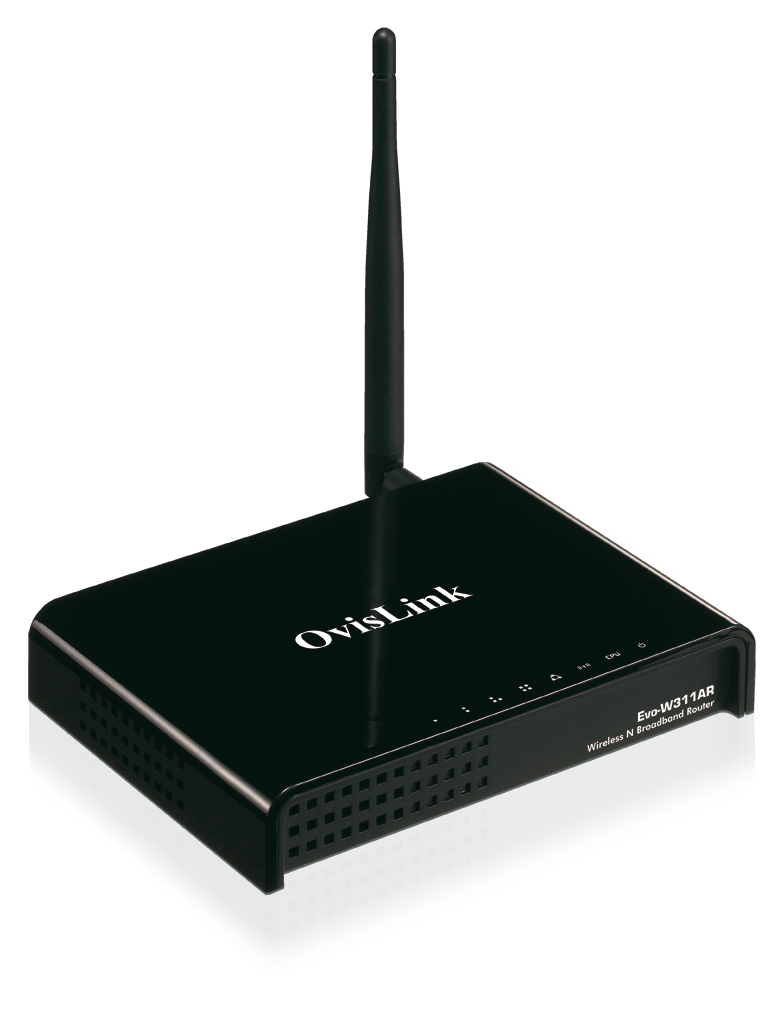

OvisLink Evo-W311AR. Top Wi-Fi standard: IEEE 802.11n, Wi-Fi standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Modulation: 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK. Ethernet LAN interface type: Fast Ethernet, Cabling technology: 10/100Base-T(X). Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 8, Receiver sensitivity: 130M: -65dBm@10% PER; 108M: -68dBm@10% PER; 54M: -68dBm@10% PER; 11M: -85dBm@8% PER;. Supported network protocols: TCP/IP, DHCP, ICMP, NAT, PPPoE, Stat IP, Dyn IP. Security algorithms: 128-bit AES, 128-bit WEP, 152-bit WEP, 64-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS, Firewall security: NAT
