Data transmission
| MAC address table |
8000 entries |
| Supported data transfer rates |
10/100/1000 Mbps |
| Number of VLANs |
4024 |
| Switching capacity |
48 Gbit/s |
| Maximum data transfer rate |
48 Gbit/s |
Other features
| Authentication method |
RADIUS |
| Input frequency |
47/63 Hz |
| Wi-Fi |
N |
| Networking features |
Fast Ethernet |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
12 |
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T |
Performance
| Packet buffer memory |
64 MB |
| Internal memory |
32 MB |
| Flash memory |
4 MB |
| Stackable |
Y |
| Noise level |
27 dB |
Protocols
| Management protocols |
SNMP, RMON, CLI, SSH, NTP, TFTP/FTP |
Power
| Input voltage |
100 - 240 V |
| Input current |
1 A |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Wireless technologies |
Wired |

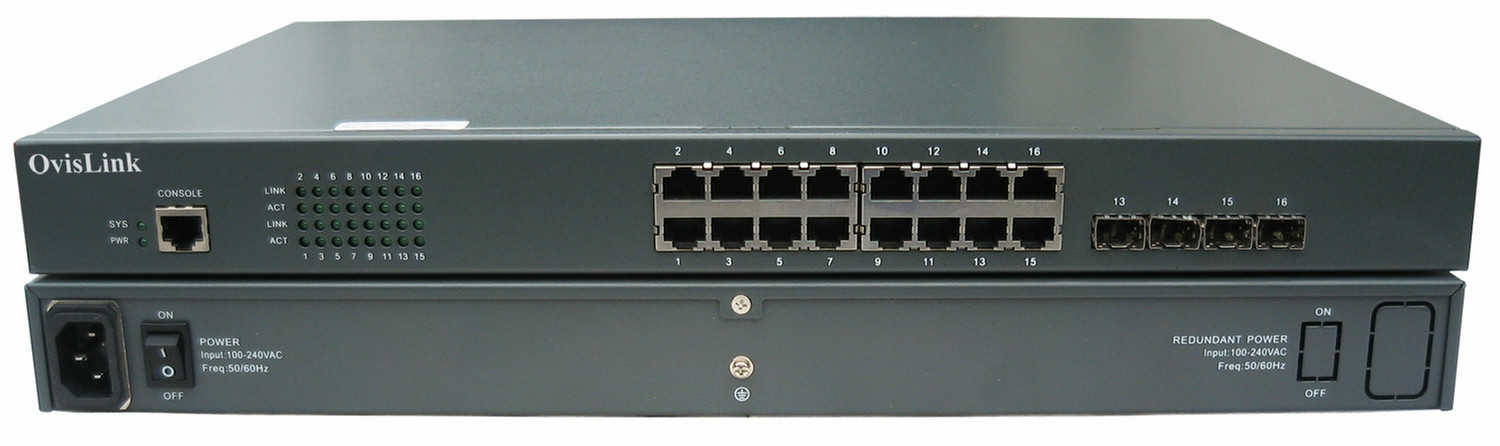

OV-2516 - 12-port 10/100/1000M Fast Ethernet 4 x 1000M TX/SFP combo ports 1 Console port Network manageable
Hi-performance, Network Manageable Fast Ethernet Switch
Proudly presented by OvisLink, OV-2500 Series is a hi-performance L2 switch
family, which is capable of gigabit speed packet forwarding. The switch has
family has different ports configuration options. Due to its high performance
and low cost, OvisLink OV-2500 family is considered a very competitive Ethernet
switching solution for community networking and workgroup networking
in enterprise networks. The hi-speed connection it provides among workgroups
can boost the capability of server clusters, and solves the bottleneck
caused by increasing users and limited bandwidth, making network resources
more available for your enterprise. More importantly, all of the advantages
are brought to you by OvisLink at low costs and with easy maintenance
and the best support.
Application
OvisLink OV-2500 Series provides desktop Gigabit Ethernet connectivity, enabling
enhanced LAN services for entry-level enterprise, midmarket, and branch office networks.
At speeds of 1000 Mbps, Gigabit Ethernet provides the bandwidth to meet new
and evolving network demands, alleviate bottlenecks, and boost performance while increasing
the return on existing infrastructure investments. Today’s workers are placing
higher demands on networks, running multiple, concurrent applications and Gigabit
Ethernet access is needed to fulfill these needs. It also provides a great solution for
data centers and server farm network access.
The OvisLink OV-2500 Series provides:
- Intelligent features at the network edge, such as sophisticated access control lists
- (ACL s) and enhanced security.
- High speed solution with Gigabit Ethernet network access
- Network control and bandwidth optimization using QoS, granular rate limiting, ACLs
- (L2-L4), and IGMP Snooping.
- Network security through a wide range of authentication methods, and Network
- Access Control based on users, ports, and MAC addresses.
- Extended manageability using CLI.
- Automatic recognition for straight-through or cross-over cables.
- Lifetime warranty.
- Free software updates.
