Management features
| Multicast support |
Y |
| Quality of Service (QoS) support |
Y |
Data transmission
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
| Supported data transfer rates |
10/100/1000 Mbps |
| Switching capacity |
64 Gbit/s |
| Maximum data transfer rate |
64 Gbit/s |
| Number of VLANs |
4024 |
Other features
| Connectivity LEDs |
Y |
| Non-operating relative humidity (non-condensing) |
0 - 90% |
| Input frequency |
47/63 Hz |
| Networking features |
Fast Ethernet |
Networking
| Port mirroring |
Y |
| Broadcast storm control |
Y |
| Rate limiting |
Y |
| Spanning tree protocol |
Y |
| Head-of-line (HOL) blocking |
Y |
| Full duplex |
Y |
Performance
| Noise level |
27 dB |
| Packet buffer memory |
64 MB |
| Flash memory |
4 MB |
| Stackable |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
20 |
| Combo SFP ports quantity |
4 |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
| SFP/SFP+ slots quantity |
4 |
Protocols
| Management protocols |
SNMP v1/2, RMON gr. 1,2,3,9, CLI (Telnet, console), SSH, Web interface, NTP, TFTP/FTP |
| Supported network protocols |
FCFS, WRR |
Power
| Input voltage |
100 - 240 V |
| Input current |
1 A |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Wireless technologies |
Wired |

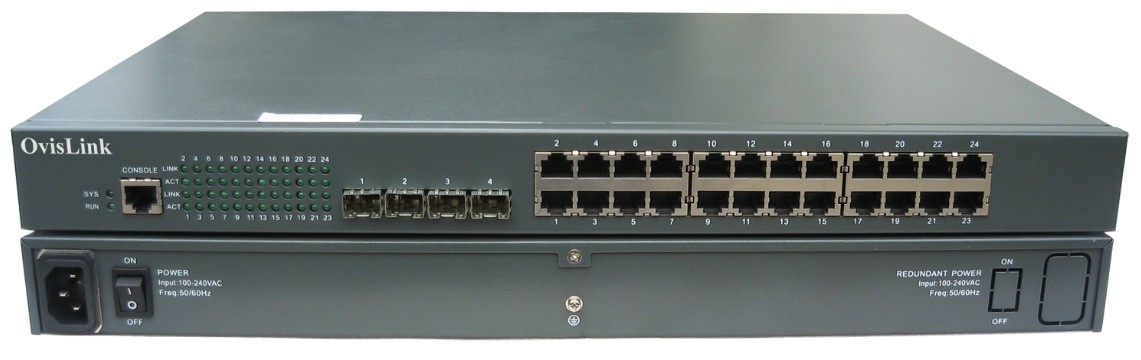

OV-2524 - Managed Layer 2, 20-port 10/100/1000M Fast Ethernet 4 x 1000M TX/SFP combo ports
Hi-performance, Network Manageable Fast Ethernet Switch
Proudly presented by OvisLink, OV-2500 Series is a hi-performance L2 switch family, which is capable of gigabit speed packet forwarding. The switch has family has different ports configuration options. Due to its high performance and low cost, OvisLink OV-2500 family is considered a very competitive Ethernet
switching solution for community networking and workgroup networking in enterprise networks. The hi-speed connection it provides among workgroups can boost the capability of server clusters, and solves the bottleneck caused by increasing users and limited bandwidth, making network resources
more available for your enterprise. More importantly, all of the advantages are brought to you by OvisLink at low costs and with easy maintenance and the best support.
Application
OvisLink OV-2500 Series provides desktop Gigabit Ethernet connectivity, enabling enhanced LAN services for entry-level enterprise, midmarket, and branch office networks. At speeds of 1000 Mbps, Gigabit Ethernet provides the bandwidth to meet new and evolving network demands, alleviate bottlenecks, and boost performance while increasing the return on existing infrastructure investments. Today’s workers are placing higher demands on networks, running multiple, concurrent applications and Gigabit Ethernet access is needed to fulfill these needs. It also provides a great solution for data centers and server farm network access.
The OvisLink OV-2500 Series provides:
- Intelligent features at the network edge, such as sophisticated access control lists (ACL s) and enhanced security.
- High speed solution with Gigabit Ethernet network access
- Network control and bandwidth optimization using QoS, granular rate limiting, ACLs (L2-L4), and IGMP Snooping.
- Network security through a wide range of authentication methods, and Network Access Control based on users, ports, and MAC addresses.
- Extended manageability using CLI.
- Automatic recognition for straight-through or cross-over cables.
- Free software updates.
