Data transmission
| MAC address table |
8000 entries |
| Supported data transfer rates |
10/100/1000 Mbps |
| Switching capacity |
128 Gbit/s |
| Maximum data transfer rate |
128 Gbit/s |
| Number of VLANs |
4024 |
Performance
| Memory type |
SDRAM |
| Packet buffer memory |
64 MB |
| Internal memory |
64 MB |
| Noise level |
21 dB |
| Flash memory |
8 MB |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
44 |
Power
| Input voltage |
100 - 240 V |
| Input current |
1 A |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Wireless technologies |
Wired |

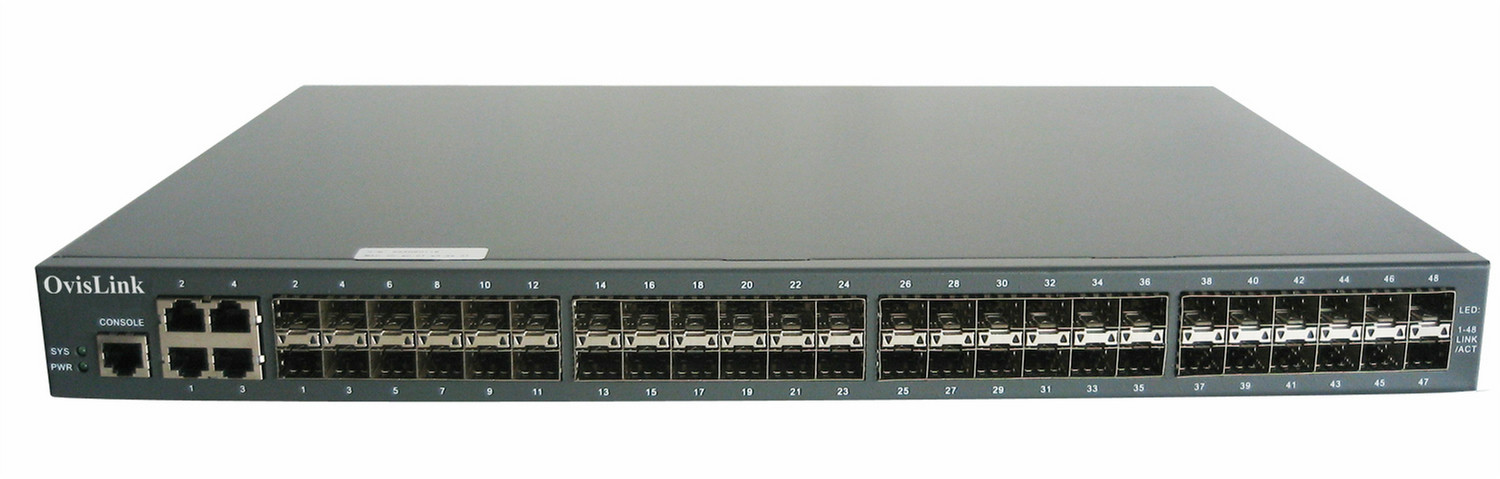

OV-2548F - 44 x Gigabit SFP slots 4 x SFP/TX combo slots 1 Console port Network manageable
Hi-performance, Network Manageable Fast Ethernet Switch
Proudly presented by OvisLink OV-2548F is an enhanced L2 switch, which
is capable of high performance and gigabit speed packet forwarding. This
switch has 44 1000M SFP slots, plus 4 TX/SFP combo ports. Due to its high
performance and low cost, OvisLink OV-2548F switch is considered a very
competitive Giga Ethernet switching solution for community networking and
workgroup networking in enterprise networks.
Application
OvisLink OV-2548F provides Gigabit Ethernet speed at network access, enabling enhanced
LAN services for middle-level and large enterprise.
The OvisLink OV-2548F also provides:
- Intelligent features at the network edge, such as access control lists (ACLs) and
- enhanced security.
- Full fiber Gigabit Ethernet access.
- Network control and bandwidth optimization using QoS, granular rate limiting,
- ACL s, and IGMP and DHCP Snooping.
- Network security through a wide range of authentication methods, and Network
- Access Control based on users, ports, and MAC addresses.
- Extended manageability using CLI.
- Lifetime warranty.
- Free software updates.
