Packaging content
| Number of keys included |
2 |
Ports & interfaces
| Integrated USB cable |
N |
| FireWire 800 |
Y |
| USB connector gender |
Female |
| eSATA ports quantity |
1 |
| USB connectivity |
Y |
| USB version |
2.0/3.0 (3.1 Gen 1) |
| USB ports quantity |
1 |
| USB connector type |
USB Type-B |
Power
| AC adapter output current |
8.33 A |
| AC adapter frequency |
50/60 Hz |
| AC adapter output voltage |
12 V |
| AC adapter input voltage |
100 - 240 V |
Storage
| Number of storage drives supported |
4 |
| Installed storage drive type |
HDD |
| Number of storage drives installed |
4 |
| Total installed storage capacity |
16000 GB |
Design
| Key lock |
Y |
| Number of fans |
1 fan(s) |
Additionally
| Chips organization |
JMicron 355 / FW800 (1394B) / FW400(1394A), JMicron 567 3.0 |
| On/Off switch |
Y |

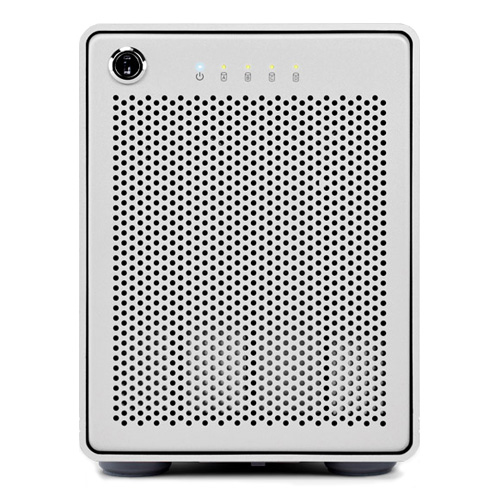

4 x 4TB, eSATA/FireWire 800/USB 3.0, RAID/JBOD, 3.9 kg
The Ultimate Blend of Professional
Performance and Convenience
The high-capacity, high-performance Mercury Elite Pro Qx2 was engineered for performance-intensive applications such as HD-video, digital photography, professional music, graphics and backup. Choose between five different RAID levels for the best combination of speed, capacity and redundancy for your needs.
Four 3.5" Serial ATA (SATA I/II) hard disk drives in a brushed aluminum enclosure with Hardware RAID setting flexibility and up to 300MB/s data transfer speed for high performance data storage and redundancy.
User-Selectable Hardware RAID Settings
Thanks to a front panel selector switch, the Mercury Elite Pro Qx2 enables easy configuration of the hardware RAID settings to Span, 0, 1, 5, 10, and JBOD/Independent drive modes – so you can select the best combination of speed, capacity, redundancy.
Span
Combines the capacity of two or more drives of the same size without any RAID data distribution scheme into one logical desktop volume. This mode can combine the capacity of varying size drives based on the lowest capacity drive in the set.
RAID 0 (Stripe)
Data is split into blocks over two or more drives at same time for high speed and large capacity. The ideal RAID setting for demanding video production/editing.
RAID 1 (Mirror)
The same data is written to two drives for highest level of data safety and redundancy.
RAID 5 (Stripe with Parity)
Data is Striped (RAID 0) while incorporating redundancy over three or more drives for the best combination for speed, capacity, and redundancy. The Multi-Interface 4 Bay Enterprise Class Performance RAID Solutions are pre-configured as RAID 5.
RAID 10 (1+0)
Data is Striped (RAID 0) over two Mirrored sets (RAID 1) of drives for fast redundancy.
JBOD/Independent drive operation
Each drive mounts as an individual volume.
