Ports & interfaces
| S/PDIF out port |
Y |
| Thunderbolt 3 ports quantity |
2 |
| Combo headphone/mic port |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
5 |
| Host interface |
Thunderbolt 3 |
| Microphone in |
Y |
| Headphone outputs |
1 |
Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Additionally
| Mini DisplayPort quantity |
1 |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |

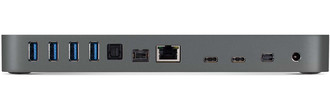

Thunderbolt 3 x 2, mini DisplayPort, USB 3.1 Gen 1 x 5, Ethernet, FireWire 800

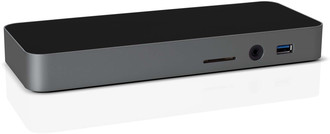

Thunderbolt 3 Dock delivers more connectivity, more power, and charging capability than ever before all at the fastest speed available today so all your connected devices perform at their maximum. Drive two 4K displays, connect and charge up to six USB devices, work with legacy FireWire storage, enjoy pristine audio, wired networks, and read SD cards, all at twice the speed of Thunderbolt 2 and all through a single cable. The possibilities are endless.
<b>View Your World</b>
Because Thunderbolt 3 delivers phenomenal bandwidth up to 40Gb/s, Thunderbolt 3 Dock can be the foundation of your perfect custom display setup. Add two ultra HD 4K displays, or a combination of 4K, HD and other displays with the mini DisplayPort port and additional Thunderbolt 3 port.
<b>Connect with your workflow</b>
If you’re a pro working in the creative industries, you probably have a highly specialized workflow complete with specialized and legacy ports like FireWire and optical audio. The OWC Thunderbolt 3 Dock supports FW800 and S/PDIF digital audio, as well as an SD card reader and analog stereo audio.
