Other features
| Maximum number of SMP processors |
1 |
| Floppy drive installed |
N |
| Graphics adapter family |
NVIDIA |
| TV tuner integrated |
N |
| Networking features |
Fast Ethernet |
Packaging content
| Display included |
N |
| Drivers included |
Y |
| Keyboard supplied |
Y |
| Handheld remote control |
N |
| Mouse included |
Y |
Processor
| Number of processors installed |
1 |
| Processor cache |
2 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
45, 65 W |
| Processor codename |
Wolfdale |
| Processor cache type |
L2 |
| Conflict Free processor |
N |
| Processor front side bus |
800 MHz |
| FSB Parity |
N |
| CPU multiplier (bus/core ratio) |
13.5 |
| Processor operating modes |
64-bit |
| Number of Processing Die Transistors |
228 M |
| Stepping |
R0 |
| Processor cores |
2 |
| Processor frequency |
2.7 GHz |
| Tcase |
74.1 °C |
| ECC supported by processor |
N |
| Bus type |
FSB |
Processor special features
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Processor package size |
37.5 mm |
| Processor ARK ID |
40478 |
| Processor code |
SLGH7 |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Graphics
| On-board graphics adapter |
N |
| Discrete graphics adapter model |
NVIDIA GeForce 7050 |
| Maximum graphics adapter memory |
0.256 GB |
Networking
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Wi-Fi |
N |
Memory
| Memory clock speed |
1333 MHz |
| Memory layout (slots x size) |
2 x 2 GB |
| Internal memory type |
DDR3-SDRAM |
| Internal memory |
4 GB |
Storage
| Compatible memory cards |
CF, Memory Stick (MS), MMC, MS PRO, SD, xD |
| Total storage capacity |
1024 GB |
| Card reader integrated |
Y |
| Hard drive interface |
Serial ATA |
Optical drive
| Optical drive type |
DVD Super Multi |
Ports & interfaces
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| eSATA ports quantity |
1 |
| HDMI ports quantity |
1 |
Additionally
| InTru™ 3D Technology |
N |
| Processing die size |
82 mm² |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |

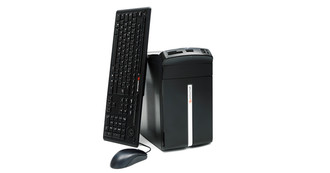

iMedia D3712 SP, Intel Pentium E5400, 4GB, DDR3, 1TB, SATA, DVD SuperMulti, Windows 7 Home Premium
Small and compact
The fashionable design of the imedia combines a sleek glossy-black chassis with matte accents and soft curves highlighted by a glowing blue power on/off button. It is 60 percent smaller than a standard desktop chassis, thus saving space while offering the same power and features of a full-size desktop.
Full of power
The imedia desktop line is driven by a selection of powerful quad-core processors, speedy DDR3 memory, up to 1 TB hard disk drive and an optional Blu-ray Disc™ drive. Peripheral connectivity is made easy via six USB 2.0 connectors, an eSATA port, optional IEEE 1394 port, HDMI™ interface and a multi-in-1 card reader. Stunning graphics and flawless fast-moving visuals are made possible by either NVIDIA GeForce or Intel graphics. Experience high-definition 7.1 surround sound via an S/PDIF connector, view your favorite TV programs using the optional DVBT TV-tuner with remote control, and get access the Internet easily with Wi-Fi connectivity.
Easy to use
Media ports are positioned in front for easy access to multimedia functionalities such as transferring your precious files from a memory card to the imedia hard disk drive. A storage deck on top of the imedia provides a convenient area for placing devices and other items. A smart cable management system hides the tangle of cables, so your desk stays neat.
