Technical details
| Hose length (max) |
15 m |
| Refrigerating medium |
R410A |
| Seasonal efficiency rating (cooling) (SEER) |
5.6 |
| Operating temperature (heating) (T-T) |
-15 - 24 °C |
| Dehumidifying capacity |
1.4 l/h |
| Seasonal efficiency rating (heating) (SCOP) (Average heating season) |
3.4 |
| Inverter technology |
Y |
| Cooling capacity in watts (min) |
900 W |
| Cooling capacity in watts (max) |
3000, 2500 W |
| Heating capacity in watts (min) |
900 W |
| Heating capacity in watts (max) |
4100, 3300 W |
| Filtering |
Y |
| Adjustable thermostat |
Y |
| Operating temperature (cooling) (T-T) |
-10 - 43 °C |
| Timer duration (maximum) |
12 h |
| Type |

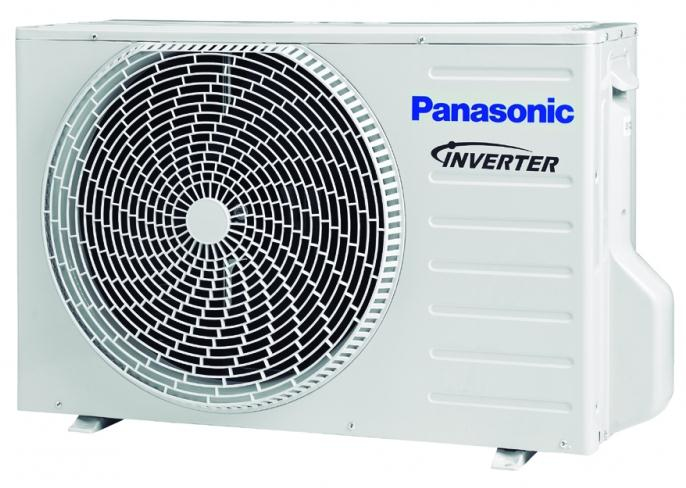

Air conditioner outdoor unit |
| Timer |
Y |
Outdoor unit
| Outdoor units quantity |
1 |
| Outdoor unit dimensions (WxDxH) |
780 x 289 x 540 mm |
| Outdoor unit weight |
23000 g |
| Heating airflow (outdoor unit) |
1842 m³/h |
| Cooling airflow (outdoor unit) |
1902 m³/h |
Sound emission
| Noise level (low speed) |
47 dB |
| Noise level (high speed) |
64 dB |
Power
| Annual energy consumption |
156 kWh |
Additionally
| Cooling energy efficiency |
3.57 |
| Heating energy efficiency |
4.02 |
| Remote controlled |
Y |
3kW cooling, 4.1kW heating, Outdoor 1902/1842 m3/h, 47/64dB, White
Panasonic - leading the way in Heating & Cooling
With more than 30 years of experience, selling to more than 120 countries around the world, Panasonic is unquestionably one of the leaders in the heating and cooling sector. With a diverse network of production and R&D facilities, Panasonic delivers innovative products incorporating cuttingedge technologies that set the standard for air conditioners worldwide. Expanding globally, Panasonic provides superior international products transcending borders.
HEALTHY AIR
- Odour-removing function
- Anti-mould filter
ENERGY, EFFICIENCY AND ECOLOGY
- Inverter system
- R410A refrigerant gas
COMFORT
- Super Quiet mode (for RE9, RE12)
- Powerful mode (for RE9, RE12 and RE15)
- Automatic vertical airflow control
- Hot start mode
- Automatic restart
- Simple change over
EASE OF USE
- 12-hr timer (only for RE9, RE12 and RE15)
- User friendly infrared remote control
EASY INSTALLATION AND MAINTENANCE
- Removable, washable panel
- Maintenance access through the top panel of the outdoor unit
- Self-diagnosis function
