Features
| Keyless chuck |
Y |
| Combi tool application |
Drilling, Screwdriving |
| Forward/Reverse operation |
Y |
| Torque settings |
18 |
| Type |
Pistol grip drill |
| Built-in light |
Y |
Battery
| Battery capacity |
4.2 Ah |
| Charging time |
70 min |
| Battery voltage |
18 V |
Performance
| Maximum torque (hard applications) |
57 Nm |
| Drilling diameter in concrete (max) |
13 mm |
| No-load speed (1st gear) |
430 RPM |
| No-load speed (2nd gear) |
1650 RPM |
| Chuck jaw width (max) |
13 mm |
| Maximum torque (soft applications) |
40 Nm |
| Drilling diameter in steel (max) |
13 mm |
| Drilling diameter in wood (max) |
36 mm |
| Screw diameter (max) |
13 mm |
Packaging content
| Plastic case |
Y |
| Side handle included |
Y |
| Battery pack |
Y |
| Number of batteries included |
2 |
| Battery charger included |
Y |
36/13/13 mm, 430/1650 rpm, 57/40 Nm, 18 V Li-ion, 4.2 Ah
HIGH POWER PERCUSSION DRILLING

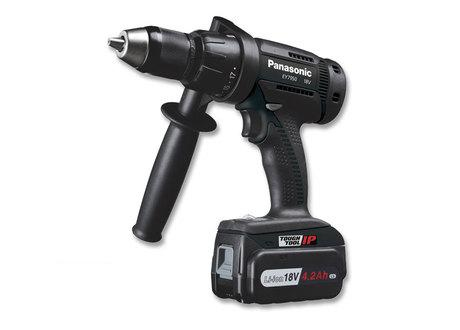

The EY 7950 LS is a multi-talented addition to the Panasonic range, offering precise drilling (up to 29,700 beats per minute) into masonry, bricks or tiles. In Drill Driver Mode it achieves 57Nm of torque.
The 4-brush motor reduces the possibility of motor burn-out by delivering continuous operation even under substantial load.
PROTECTION TECHNOLOGY
The Tough Tool IP* concept includes features such as sensors which monitor batteries and protect against overheating and ‘over-discharge’. This technology ensures reliable, safe and powerful operation for the user.
1: Switch
Increased sealing helps protect against water and dust.
2: Electronics
The electronic circuits in control panel and battery pack are covered by a urethane layer for added dust and water protection.
3: Battery
The battery cells are designed to avoid intrusion of moisture.
