Projector
| Projector brightness |
6000 ANSI lumens |
| Keystone correction, horizontal |
40 ° |
| Projection technology |
DLP |
Packaging content
| Handheld remote control |
Y |
Ports & interfaces
| Component video (YPbPr/YCbCr) in |
1 |
| VGA (D-Sub) ports quantity |
2 |
Performance
| Vertical scan range |
24 - 120 Hz |
Additionally
| Display scan frequency (horizontal) |
15 - 100 kHz |
| S-Video in |
1 |

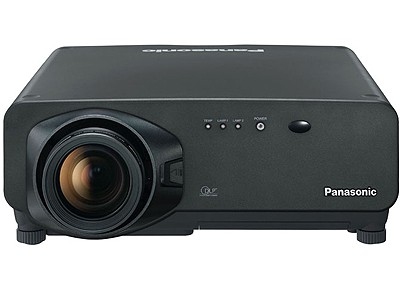

PTD7700EK DLP-Based SXGA Projector
The professional solution
3-Chip Large-Venue DLP-Based Projector
The PTDW7700EK combines the latest 3-chip system based on DLP technology with a new optical system.
Superb Image Quality
Image quality from 3-chip DLP technology - gives light utilisation for high brightness, digital processing for low noise and linear white balance, extended device life for minimal image degradation and a quick response that eliminates afterimages, powerful 7000 lumens, astounding 4000:1 contrast ratio with dynamic iris, 16-bit colour depth for film-like natural image, progressive cinema scan (3/2 Pulldown), dynamic sharpless control.
High Reliability and Easy Maintenance
Liquid-cooling system extends projector performance and attains a high level of reliability, dustproof design with sealed optical back for crisp, sharp, high-resolution images over an extended service life, dual lamp system and lamp relay function increases brightness and extends continuous operating time, optional long-life lamp, easy lamp replacement, dust filter cleaning.
Flexible System Application
Horizontal/vertical lens shift gives easy, accurate adjustment when installing the projector, optical lenses for various venues enable the projector to perform superbly, connection terminals, abundant optional interface boards, quiet operation, built-in multi-screen processor, colour matching and edge blending.
Networking
Wired LAN system, web browser control/monitoring, e-mail message alert.
